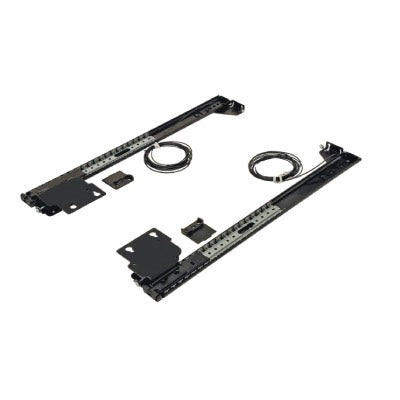

Cabinet Pocket Pivot Sliding Door Runner Accuride 1432.

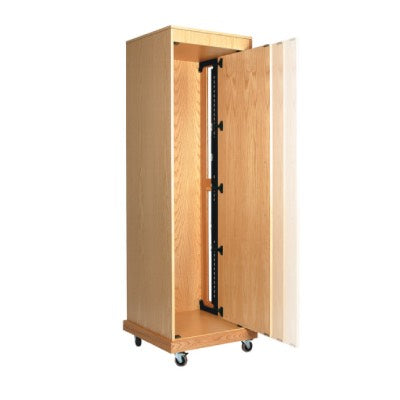

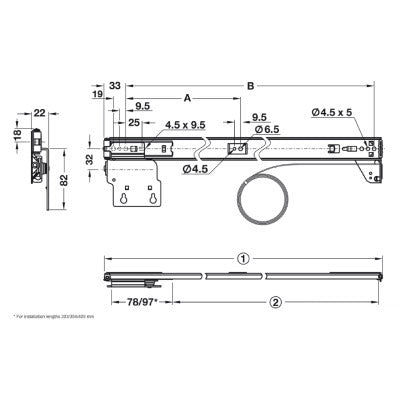

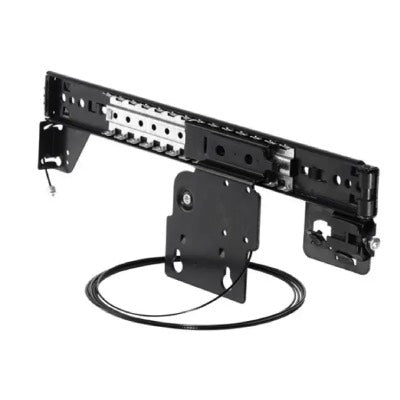

The DB1432 pocket door slide is suitable for heavier duty applications, with a door weight of up to 34kg. Suitable for tall and heavy doors, this quiet pocket door hardware has a synchronized cable system which eliminates the risk of racking an keeps the door straight and aligned, resulting in a quiet pocket door movement. Additionally, synchronised runners for effortless and smooth operation Also, suitable for: Overlay or Inset application For door widths: 255-660mm For door height: 914-2300mm Maximum door weight: 34kg Door thickness: 19-32mm for inset; 19mm for overlay One set of runners is sufficient for one door only 1432 Material: Steel Finish: Zinc/Black Partial overlay doors: The runner should be the length of the cabinet depth or less. Lastly, if it is longer it will protrude from the front of the cabinet. The calculation will be: Cabinet depth - 3mm clearance = runner length (or shorter) Inset doors: You will need to allow space for the door inside the cabinet, the calculation will be: Cabinet depth - door thickness - 3mm clearance = runner length (or shorter)

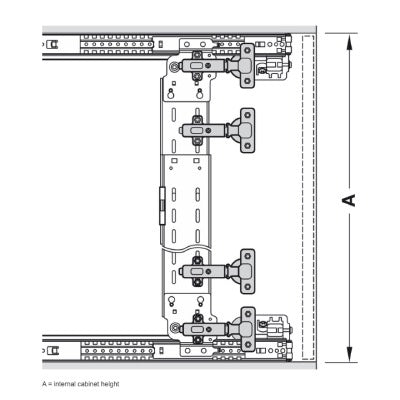

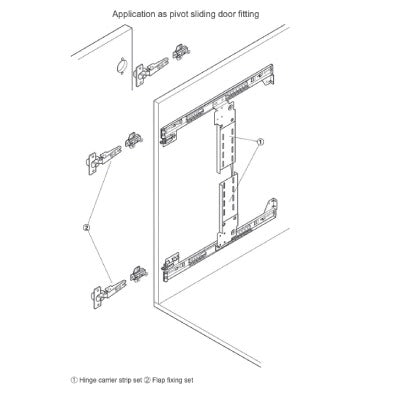

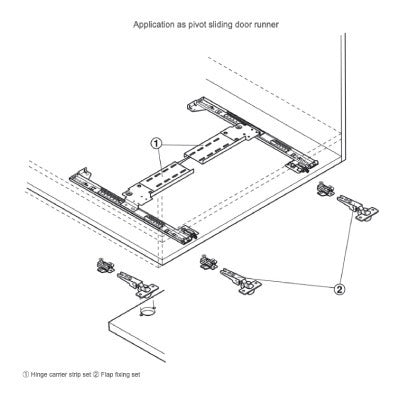

Hinges and hinge plates must be purchased separately - available on other listing. A number of hinges required per door height: 915-1193mm (3 hinges) 1194-1498mm (4 hinges) 1499-1803mm (5 hinges) 1804-2300mm (6 hinges) Lastly, please note that Blum overlay hinges can only be used in inset application for 19-22mm door thickness only. Otherwise, the Accuride hinges need to be used. Finally, number of hinge plate sets are required per 2 doors: 2 set for 2 doors 915-1422mm tall 3 sets for 2 doors 1423-2000mm tall 4 sets for 2 doors 2001-2300mm tall Inset doors 19-20.6mm thick, with 35mm hinge - order hinge kit 81020690-A Hinge Set For Accuride 1432 - Inset Inset doors 20.6-31.8mm thick, with 40mm hinge - order hinge kit 81020890-A Partial overlay doors maximum door thickness 19mm, with 40mm hinge - order hinge kit 81020790-A Hinge Set For Accuride 1432 - Overlay
