Hafele Axilo 78 Plinth System FOOT and SHAFT Section 53-193mm

Hafele Axilo 78 Plinth System FOOT and SHAFT Section

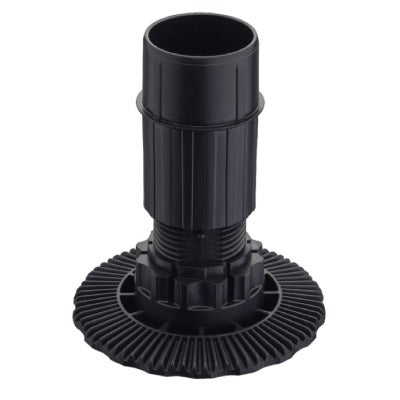

Hafele Axilo 53-193 mm plinth foot and shaft section
Height adjustment: Adjustable at the side and from above -10 to +20 mm using Axilo adjusting tool
Installation: For plug fitting into top section (screw or press fixing)
Load bearing capacity: 150 kg per foot
Installation Height:
- 60 mm, Adjustment facility 53-80 mm
- 80 mm, adjustment facility 70-100 mm
- 100 mm, adjustment facility 90-120 mm
- 125 mm, adjustment facility 115-145 mm
- 150 mm, adjustment facility 140-170 mm
- 180 mm, adjustment facility 170-198 mm
Material: Plastic
Colour: Black

Plinth Foot Top section from other listing
