Blum Trade Pack

Plan your Blum hinge project

Choose your door application, thickness, opening angle and finish, then check the box quantities below. Count hinges, mounting plates and fixings separately: mounting plates are not included with these hinges, and plate fixings are supplied separately.

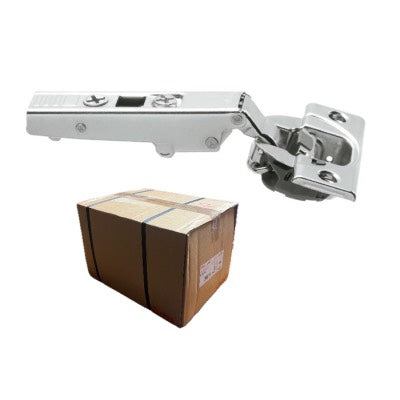

Full overlay

110° soft-close 71B3550 hinges, for doors up to 24mm thick: nickel plated or Onyx Black. Box of 250 hinges each.

Half overlay

This collection has no half-overlay hinge. Contact FixFit with your half-overlay requirements before choosing an alternative.

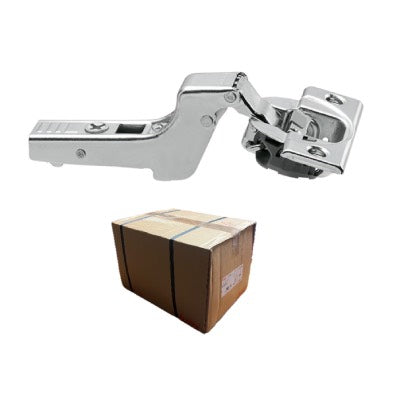

Inset

110° soft-close 71B3750 hinges, for doors up to 24mm thick: nickel plated or Onyx Black. Box of 250 hinges each.

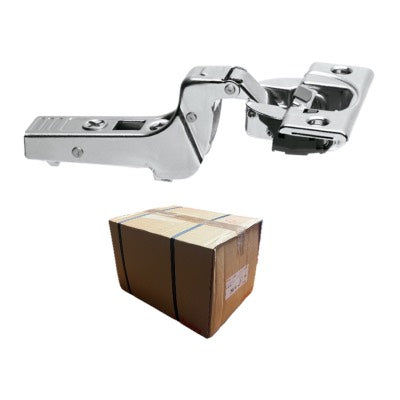

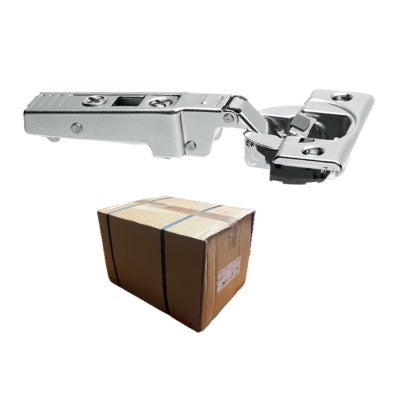

Thick-door and profile applications

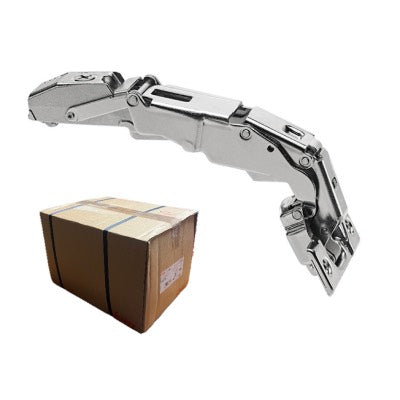

Zero-protrusion

71B7550 155° full-overlay soft-close hinge, nickel plated, box of 125. Listed for wide-opening doors and cabinets with inner pull-outs. Check the product's door-thickness and angle-stop requirements against your design.

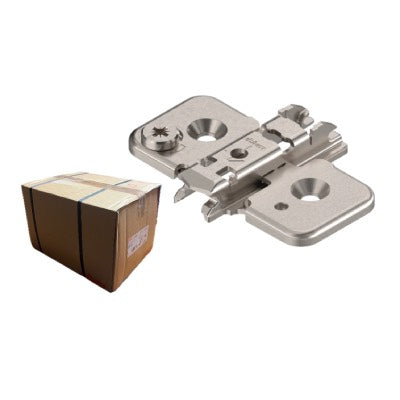

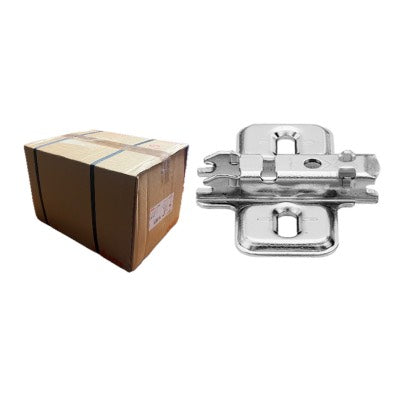

Mounting plates

These 0mm-spacing plates are listed for 18mm cabinet sides. Each comes in a box of 500; screws are not included.

Hinge screws

Blum Ø6mm Euro system screws: box of 1,000, with 10, 11.5, 13 and 14.5mm length options and a specified 5mm drilling diameter. Check the fixing requirements of your selected plate and board; do not assume one screw suits every plate.

Need project-specific quantities?

Contact FixFit to discuss your project quantities. Include your door count, dimensions and thicknesses, overlay or inset layout, preferred finish, any inner pull-outs and the product references you are considering.
