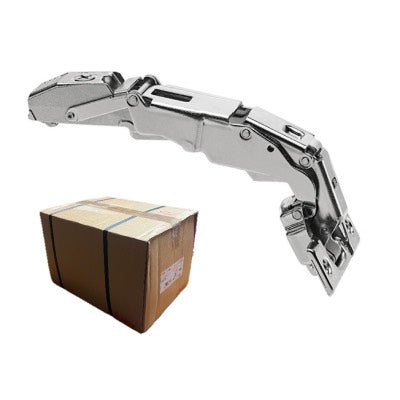

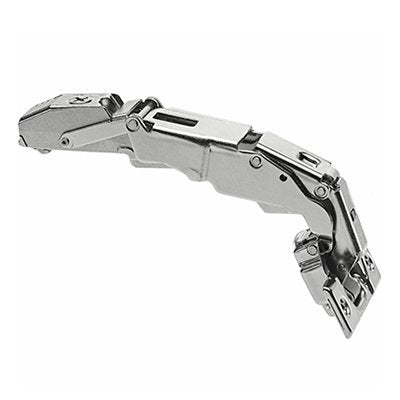

Blum 71B7550 Soft Close 155° Zero Protrusion Full Overlay Hinge-Box 125
Blum 71B7550 Soft Close 155° Zero Protrusion Full Overlay Hinge-Box 125
SKU:
Couldn't load pickup availability
Blum 71B7550 Soft Close 155° Zero Protrusion Full Overlay Cabinet Hinge Box 125
The benefits of ClipTop Blumotion are integrated into the wide angle hinge with 0-protrusion, also suitable for special applications, e.g. mitred.

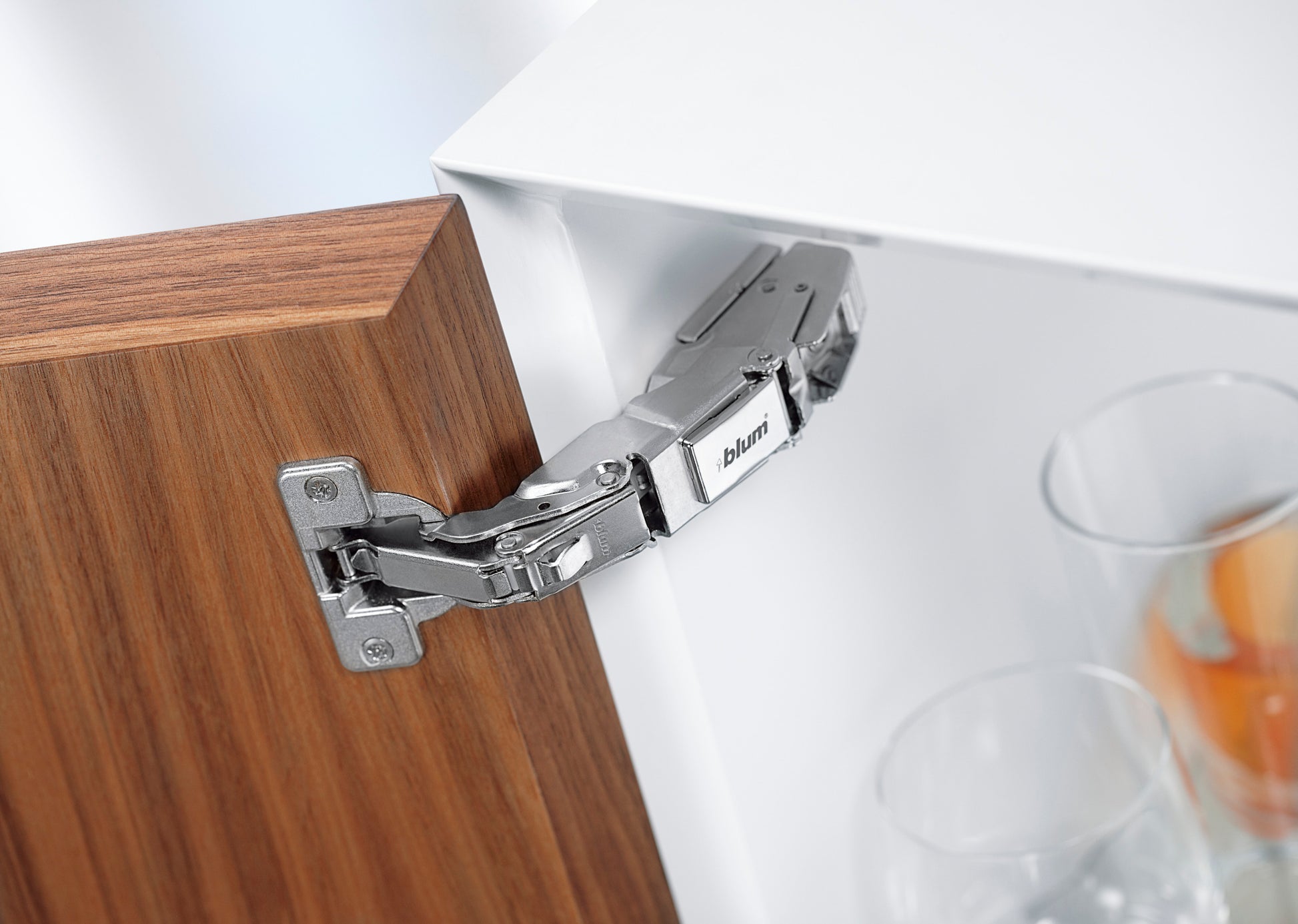

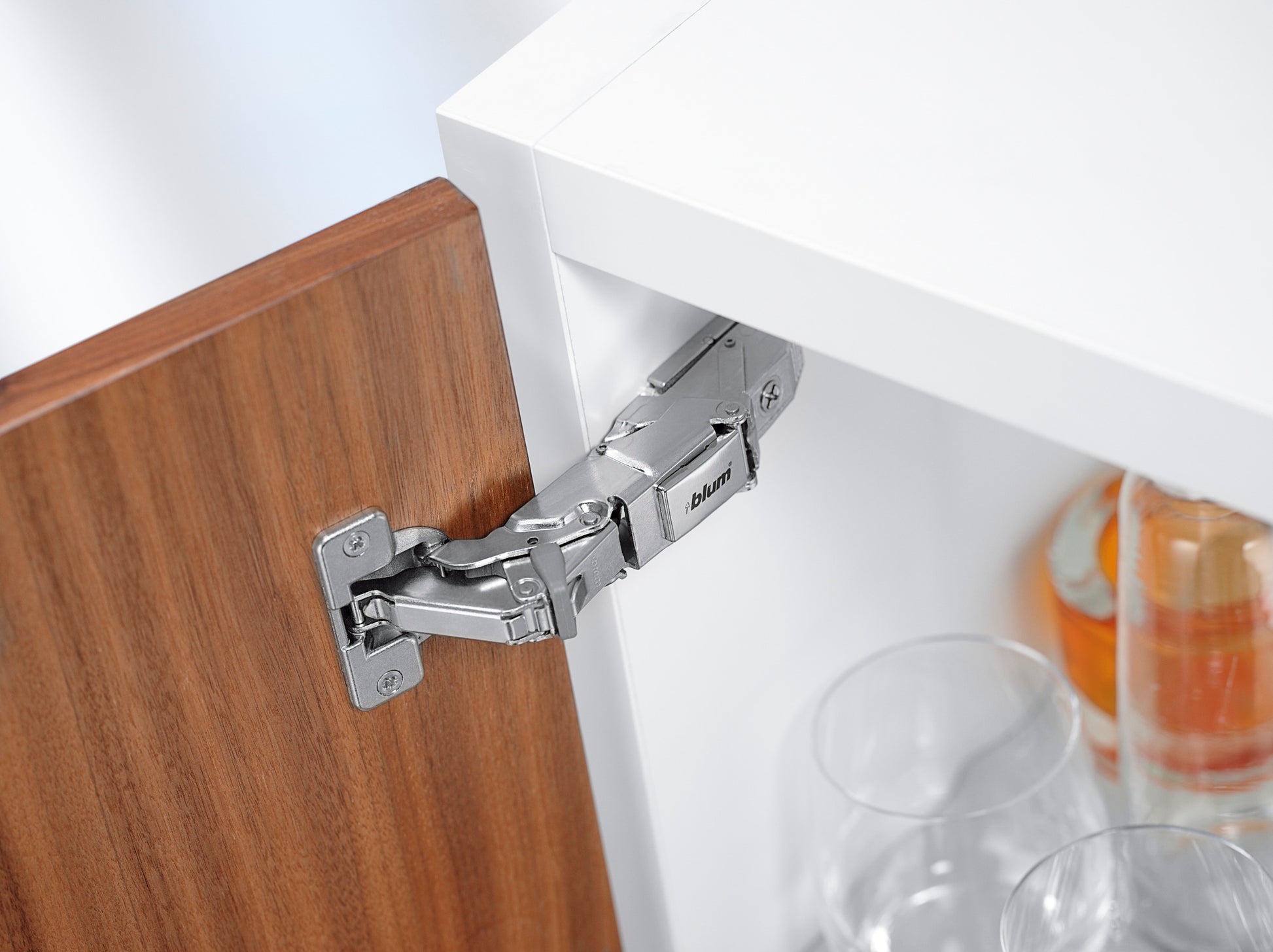

This hinges is designed for cabinet doors which require wide opening angles or contain inner pull-outs. The zero-protrusion hinge ensures the drawer can pull forward past the door, unhindered. To restrict the opening angle of the hinge to 110°, fit nylon stop, if cabinet sides are 23mm up to 34mm.
Blumotion gives silent and effortless soft closing function every time. ClipTop Blumotion 155°.
Hinge for door thickness 20 to 24mm *can be up to 31mm if combined with a Blum 92° Angle Stop 70T7553.09
71B7550 hinge for wider door openings specially tall units and units with drawers.
Pack Quantity: Box 125
Brand: Blum
Application: Full Overlay
Finish: Nickel Plated
Material: Steel
Opening angle: 155 Degree
Blumotion device: Integrated
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
Mounting Plates not included, available from other listings Mounting Plates
