Soft Close Lift Mechanism Stay Cabinet Hinge Set

GTV Soft Close Lift up Stay Cabinet Hinge System set.

The collection of our most popular lifts has been extended with new stronger models.
Among them a push to open variant is available-on special order, thanks to which the front opens slightly when pressed and it does not require handles mounting.
New lifts are available in the soft close version, i.e. with a soft closing system, which allows for gentle and noiseless closing of the front.
The new lift is distinguished by a fashionable, minimalistic design.
We offer two colour versions, currently the most popular in the furniture industry is a stylish Anthracite Grey. Quality and style is similar to Blum HK TOP.

Set Sold in pairs with caps and all fittings.
Available in 4 strengths - low, medium, strong and strong-plus
Power-480-1250, door 250-400
Power-960-2350, door 250-500
Power-1600-3600, door 250-500
Power-2500-4500, door 600

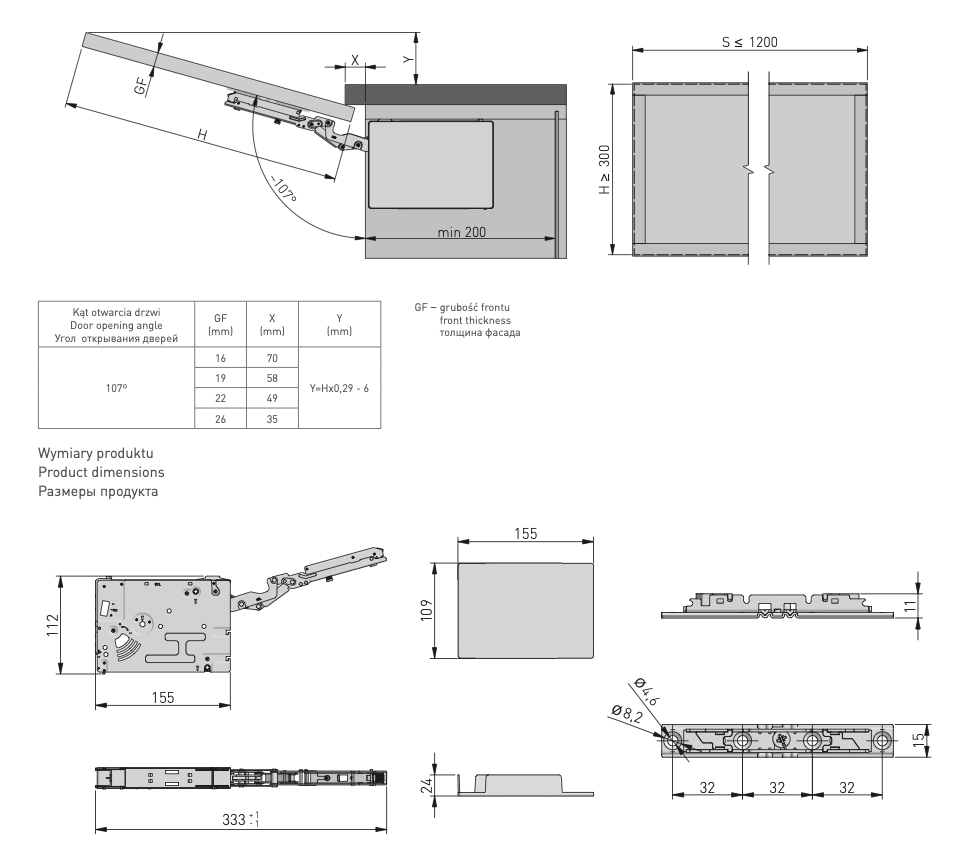

To calculate Power Factor: Height in mm x door weight including handles

Colour: Anthracite grey
Type: Soft close system
Closing Speed Adjustment
Hovering Adjustment
Door position adjustment
Do not require cabinet/door hinges
Set includes:
1. 1x lift mechanism set (pair)
2. 1x grey cover caps set (pair)
3. 1x front fixing-brackets set (pair)
4. 6x screws for wood Ø 4x38mm
5. 4x screws for wood Ø 4x16mm
