Ball Bearing Drawer Runners Black Standard Full Extension Side Mounted

Ball Bearing drawer Runners Black Standard Full Extension Side Mounted Ball Bearing.

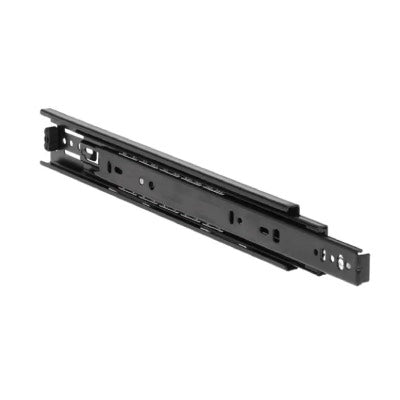

Ball bearing drawer runners black, his light duty cabinet drawer slide is a staple from our Accuride Original line and is complete with greater strength and movement, full-extension and a lever disconnect feature.
A classic drawer slide, the DB3832 model fits a wide range of applications and drawer sizes, including pull-out shelves, kitchen utensil drawers and point-of-sales trays, to name just a few.
The hold-in detent on the DB3832 prevents roll-out and bounce back and the silent operation puts this model at the forefront of high-performance movement solutions. Our patented Cam Drawer Adjust allows for precise vertical adjustment and a new face frame hole provides easy access to mounting. An optional clip-on bracket is available for bottom and platform mounting of this slide.
Suitable: Standard or inner drawer
Available in sizes - from 150mm to 700mm
Quick Release System from front

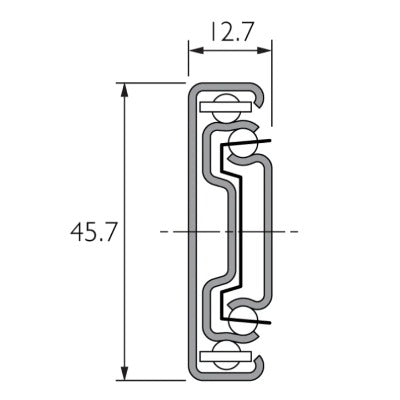

Height - 45mm
Thickness - 12.7mm
Allowable load - 50 kg
Full extension Telescopic slider construction
Bearing: Ball bearings
Material: Mild Steel
Finish: Zinc/ Black
Mounting: Sider
With Cam Adjust
Optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space

Soft Close version available from here Drawer Runners Soft Close Side Mounted 45 mm Ball Bearing
Link for Movie DB3832 Black
