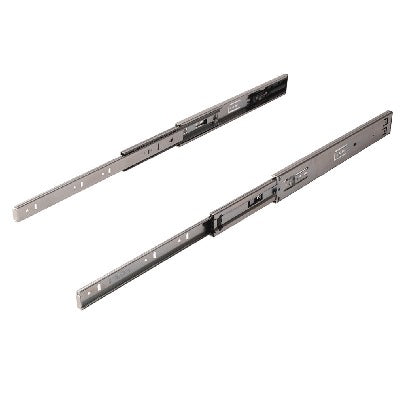

Ball Bearing Drawer Runners Standard Full Extension Side Mounted

Ball Bearing drawer Runners Standard Full Extension Side Mounted Ball Bearing.

Ball bearing drawer runners mainly used for desk pedestals and general storage drawers, display cabinets and other applications requiring a minimum profile slide.
Hold-in feature are suitable for bedroom or kitchen applications.
Removing the running track With release lever Standard Full Extension Ball Bearing 45 mm Drawer Runners Not soft close-standard opening and closing
Suitable: Standard or inner drawer
Available in sizes - from 250mm to 700mm
Quick Release System

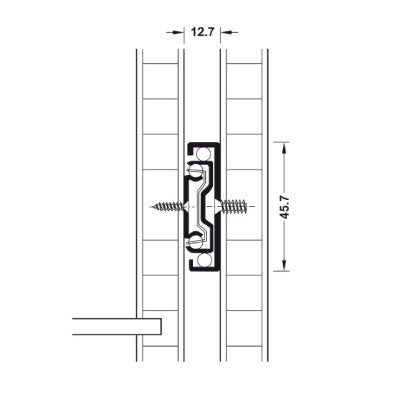

Height - 45mm
Thickness - 12.7mm
Allowable load - 35-40 kg
Full extension Telescopic slider construction
Bearing: Ball bearings
Material: Steel
Finish: Galvanised
Mounting: Sider
Optimum performance allow between +0.2mm and +0.5mm over the nominal runner thickness, for the runner space

Soft Close version available from here Drawer Runners Soft Close Side Mounted 45 mm Ball Bearing
