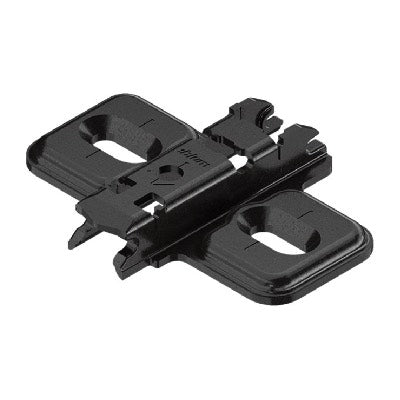

Blum Mounting Plate 173L6100 OB Onyx Black Cruciform 0mm Spacing

Blum 173L6100-OB Onyx Black Hinge Mounting Plate Cruciform 0mm spacing

Compatible with any Blum CLIP/ClipTop or ClipTop Blumotion hinge.
Pressed steel cruciform mounting plate. A third fixing point can be used for wide angled hinges or heavy doors.
Blum mounting plates offer quick and easy door installation designed with ease of use in mind.
The hinge simply clips onto the mounting plate. This ensures your cabinet door can be affixed or removed quickly and easily.
Furthermore, the unique Blum design ensures your door will not come loose.
Therefore, the hinge mounting plate allows the height of the door to be easily adjusted, ensuring a professional finish.
Additionally, the benefits of using this plate suitable for common 18mm board.

Blum 173L6100-OB Onyx Black Mounting Plate 0mm spacing for 18mm cabinetry
In brief, those are Essential for fixing the Blum cabinet hinges to the cabinet carcass. Blum Range
In summary, heavy duty, but with minimal adjustment
Height adjustment: +/-3mm
Finish: Onyx Black
Fixing Method: Screw-on
Fixings Included: No
Required fixings: Chipboard screws Ø 3.5 or 4mm by 17mm into 18mm board
Hinge Type: CLIP
Material: Steel
Spacing: 0mm
Plate Height: 8.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole

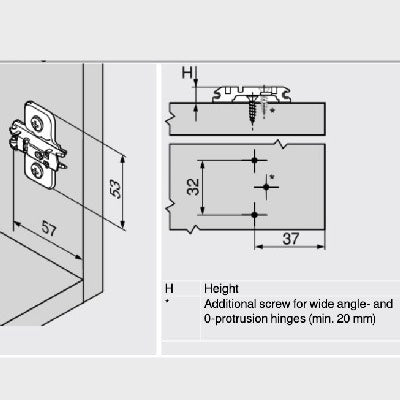

Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm

Further plates suitable for Blum hinges Mounting Plates
