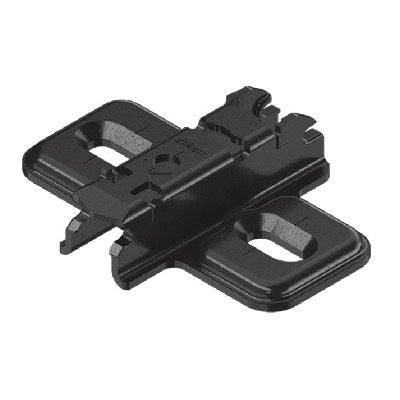

Blum Mounting Plate 173L6130 OB Onyx Black Cruciform 3mm Spacing

Blum 173L6130-OB Onyx Black Hinge Mounting Plate Cruciform 3mm Spacing

Compatible with any Blum CLIP/ClipTop or ClipTop Blumotion hinge.
Pressed steel cruciform mounting plate. A third fixing point can be used for wide angled hinges or heavy doors.
Blum mounting plates offer quick and easy door installation designed with ease of use in mind.
The hinge simply clips onto the mounting plate. This ensures your cabinet door can be affixed or removed quickly and easily.
Furthermore, the unique Blum design ensures your door will not come loose.
Therefore, the hinge mounting plate allows the height of the door to be easily adjusted, ensuring a professional finish.
Additionally, the benefits of using this plate suitable for common 15mm board.

Blum 173L6130-OB Onyx Black Mounting Plate 3mm spacing for 15mm cabinetry
In brief, those are Essential for fixing the Blum cabinet hinges to the cabinet carcass. Blum Range
In summary, heavy duty, but with minimal adjustment
Height adjustment: +/-3mm
Finish: Onyx Black
Fixing Method: Screw-on
Fixings Included: No
Required fixings: Chipboard screws Ø 3.5 or 4mm by 14mm into 15mm board
Hinge Type: CLIP
Material: Steel
Spacing: 3mm
Plate Height: 11.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole

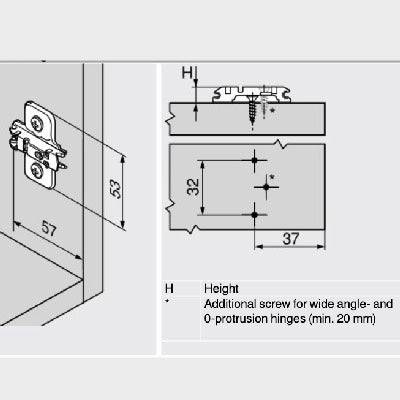

Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
