Blum Mounting Plate 173L8100 Clip Euro Screw 0mm Spacing

Blum 173L8100 Hinge Mounting Plate Euro Screw 0mm spacing

Blum 173L8100 Mounting Plate Euro-0mm is compatible with any Blum CLIP/ClipTop or ClipTop Blumotion hinge.
Pressed steel cruciform mounting plate.
A third fixing point can be used for wide angled hinges or heavy doors.
The hinge simply clips onto the mounting plate.
This ensures your cabinet door can be affixed or removed quickly and easily.
Furthermore, the unique Blum design ensures your door will not come loose.
Therefore, the hinge mounting plate allows the height of the door to be easily adjusted, ensuring a professional finish.
Additionally, the benefits of using this plate suitable for common 18mm board.

Blum 173L8100 Mounting Plate Euro-0mm for 18mm cabinetry
In summary, heavy duty, but with minimal adjustment
Height adjustment: +/-3mm
Finish: Nickel Plated
Fixing Method: Pre-Mounted system screws
Fixings Included: Yes 6mm
Hinge Type: CLIP
Material: Steel
Spacing: 0mm
Plate Height: 8.5mm
Type: Mounting Plate
Height Adjustment Method: Elongated Hole

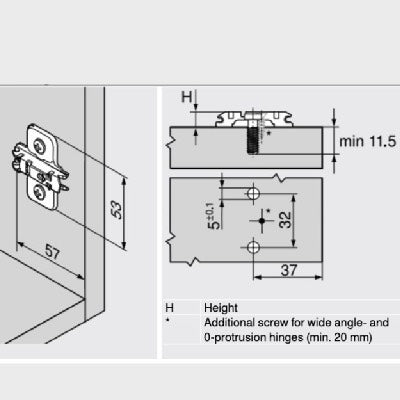

Installation:
Distance between fixing positions: 32mm
Distance cabinet front edge to first fixing position: 37mm
