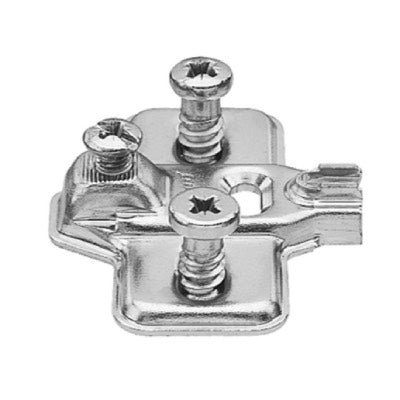

Blum 193L8100 MODUL Cruciform Mounting Plate 0mm Spacing with Euro

Blum 193L8100 MODUL Cruciform Mounting Plate 0mm with Euro Screws

MODUL's combined slide-on and screw-fix feature has proven its worth for many years.
The functional hinge is very popular with furniture makers.
The hinge delivers easy slide-on front to cabinet assembly. Blum MODUL
Its single-dimensional adjustment feature guarantees good gap alignment.
And an integrated pull-out stop ensures that doors are held in place.
Blum 193L8100 MODUL Mounting Plate for standard applications
Blind corner applications
Hinges with integrated soft-close Blumotion for small blind corner applications
Refrigerator applications
Hinge for refrigerator doors connected with a sliding mechanism
In every perfect hinge fitting you will need mounting plate.
We have mounting plates to suit application

Compatible hinge: MODUL
Shape of mounting plate: Cruciform
Plate Height: 8.3 mm
Spacing: 0mm
Material: Steel
Finish: Nickel plated
Fixings: Pre-mounted system screws Ø6mm
Mounting plates height adjustment: With elongated hole
Height adjustment: +/- 2mm

Installation:
Cabinet front edge to first fixing position: 37mm
Diameter of fixing holes: 5mm
Drilling depth of fixing holes: 11.5mm

Easy and efficient slide-on assembly
Single-dimensional door adjustment
Pull-out stop
Blum Assembly MODUL

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
Templates or jigs are available from our listing under Tools
