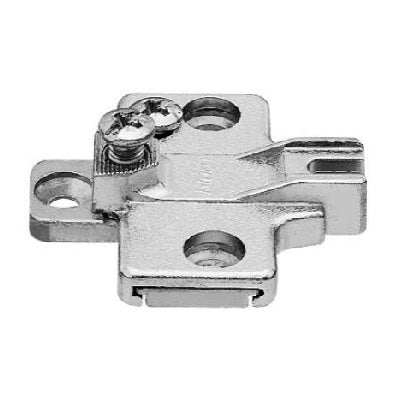

Blum 195H7130 MODUL Cruciform Mounting Plate 3mm Spacing

Blum 195H7130 MODUL Cruciform Mounting Plate 3mm for wood screws

MODUL's combined slide-on and screw-fix feature has proven its worth for many years.
The functional hinge is very popular with furniture makers.
The hinge delivers easy slide-on front to cabinet assembly. Blum MODUL
Its single-dimensional adjustment feature guarantees good gap alignment.
And an integrated pull-out stop ensures that doors are held in place.
Blum 195H7130 MODUL Mounting Plate for standard applications
Blind corner applications
Hinges with integrated soft-close Blumotion for small blind corner applications
Refrigerator applications
Hinge for refrigerator doors connected with a sliding mechanism
In every perfect hinge fitting you will need mounting plate.
We have mounting plates to suit application

Compatible hinge: MODUL
Shape of mounting plate: Cruciform
Plate Height: 12.2 mm
Spacing: 3mm
Material: Zinc diecast
Finish: Nickel plated
Fixings: Wood Screws 3.5/4mm
Mounting plates height adjustment: With elongated hole
Height adjustment: +/- 2mm

Installation:
Cabinet front edge to first fixing position: 37mm

Easy and efficient slide-on assembly
Single-dimensional door adjustment
Pull-out stop
Blum Assembly MODUL

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
Templates or jigs are available from our listing under Tools
