Blum 20K2C00 Aventos HK-S Lift Mechanism Set

Blum 20K2C00 Aventos HK-S Lift Mechanism Set Blumotion.

For use with cabinet heights from 180mm to 600mm, widths up to 1800mm and a power factor of 400 - 1000.
Aventos HK-S is the perfect choice for small lift systems in wall or tall cabinets, e.g. above refrigerators and ovens.
Thanks to its compact dimensions, the lift mechanism fits snugly into small cabinets and excels in terms of simple assembly and user convenience.
Additionally, fronts open and close with ultimate ease, thanks to Blumotion.

HK-S lift mechanism set is ideal for small cabinets, link for whole range Aventos HK-S
Perfect motion with a 107° opening angle
3-dimensional front adjustment
Furthermore, hinges are not required
Versatile use of materials- can be used with wooden fronts, wide and narrow aluminium frames.
in addition 100° and 75°opening angle stops ensure that little space is needed above the cabinet. Blum 100° Opening Angle Stop For Aventos HK-S 20K7A41 Restriction Clips

Blum 20K2C00 Aventos HK-S lift mechanism
Power factor: 400 - 1000
Minimum internal cabinet depth: 163mm
Minimum internal cabinet height: 150mm
Maximum cabinet height: 600mm
Fixing to cabinet: Screw-on
Closing mechanism: Blumotion soft close
Lift material: Steel/Zinc plated

Lastly to determine power factor - Multiply the cabinet height (mm) by the door weight include double handle weight (kg)
Additionally, the power factor LF can be increased by 50% when a third lift mechanism is used

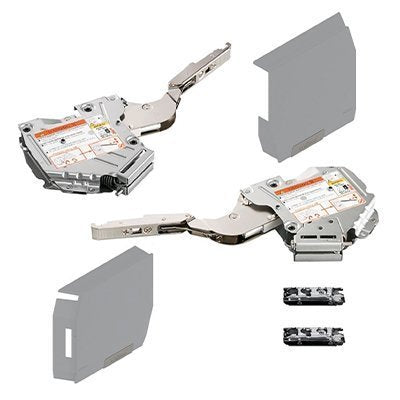

Items Included: Left/Right Mechanism, Grey cover caps, 6 screws 35 x Ø4.0mm and 2 inline mounting plates
