Blum 22F2800 Aventos HF Top Bi-Fold Lift Mechanism

Blum 22F2800 Aventos HF TOP Bi-Fold Lift Mechanism Blumotion.

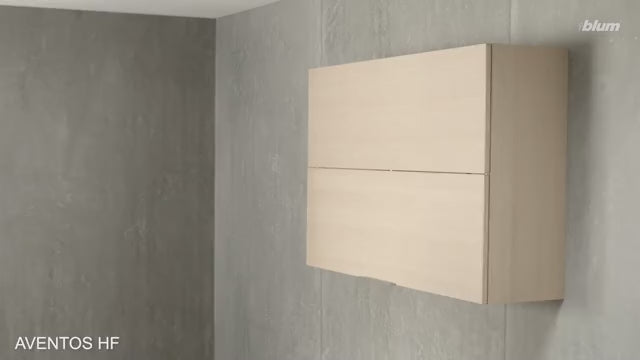

Aventos HF Top Lifts for wall cabinets with two part bi-fold fronts and minimal space requirements above.
The bi-fold lift system is ideal for taller wall cabinets with large fronts because the handle remains easy to reach.
Simple to install and smooth to operate.
Quick and easy assembly and removal due to clip technology.
The HF mechanism effortlessly lifts both heavy and light doors, while the variable stop ensures the fascia always remains in the desired position.
As the door closes, integral soft-close dampers effortlessly and silently draw the door shut, preventing slamming.
To determine power factor - Multiply the cabinet height (mm) by the combined door weight include handle weight (kg).

Versatility - Used with wooden fronts, wide and narrow aluminium frames.
Adaptability - Combine with the Blum 21FA000 SERVO-DRIVE.
Adjustment - 3-dimensional adjustment of both fronts
Type: Heavy Duty
Power factor: 10000 - 19300
Minimum internal cabinet depth: 264mm
Cabinet Height: 480-1200mm
Cabinet Width: 1800mm
Fixing to cabinet: Screw-on
Closing mechanism: Blumotion soft close
Lift material: Steel/Zinc plated
Package: Left & Right mechanism with 8 chipboard screws 35 x Ø4.0mm

Please note: Telescopic bi-fold arm set, cover caps, bi-fold hinge pack and front fixings to be purchased separately.
