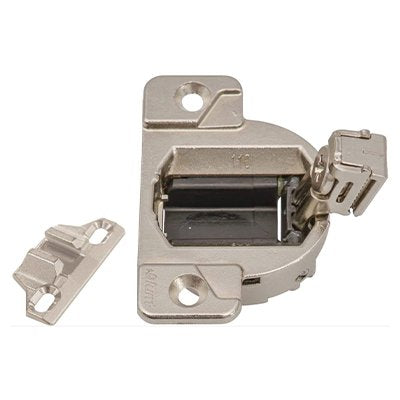

Blum 33.3600 Compact Face Hinge 110° and Mounting Plate 133.0240

Blum 33.3600 Compact Hinge 110° With Spring and Mounting Plate 133.0240
A compact and small concealed hinge which mounts within a 35mm hole in the door.

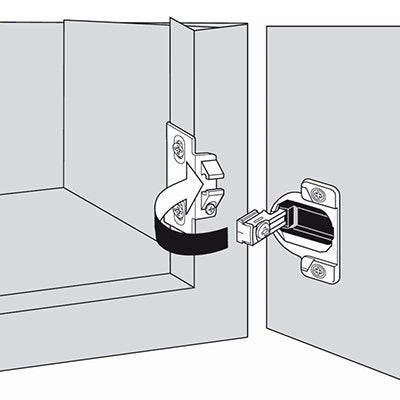

Used for overlay applications with the doors fixed to the frame face, ideal for fitted bedroom and kitchen furniture.
Application: Overlay
Opening angle: 110°
Closing mechanism: with spring
Boss material: Zinc boss,
Finish: Nickel plated
Boss assembly: screw-on
Height adjustment: +/- 3.2 mm
Depth Adjustment: +/- 2 mm
Door Thickness: 16-24 mm
Plate: 133.0240 included
Finish: Nickel Plated
