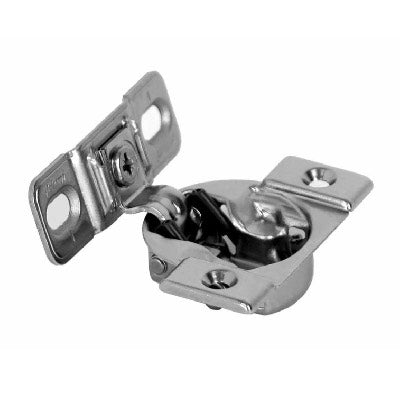

Blum 38B355AF22 Sprung Compact Face Fix Hinge

Blum 38B355Af22 Sprung Compact Face Fix Hinge with integrated plate

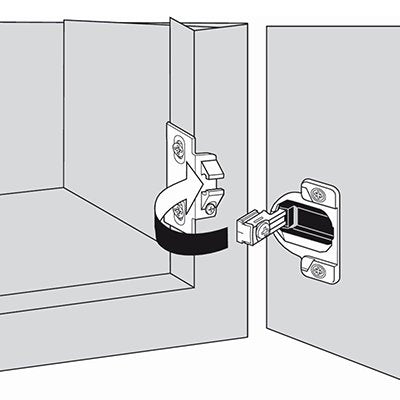

A compact and small concealed hinge which mounts within a 35mm hole in the door.
Used for overlay applications with the doors fixed to the frame face.
Application: Overlay
Opening angle: 107
Closing mechanism: with spring
Boss material: Steel boss
Finish: Nickel plated
Boss assembly: screw-on
Height adjustment: +/- 3.2 mm
Depth Adjustment: +/- 2 mm
Door Thickness: 16-24 mm
