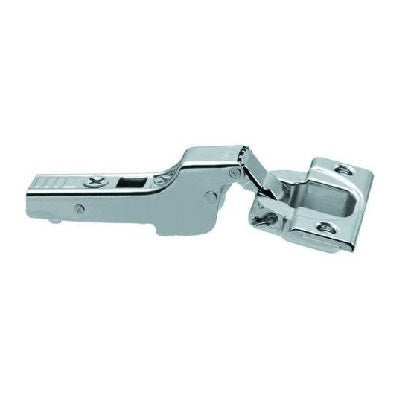

Blum 70M2650.TL ClipTop 100° UNSPRUNG Half/Dual Overlay Door Hinge
Door thickness: 16 to 24mm
Opening angle: 100°
Cranking: Half/Dual Overlay application
Finish: Nickel plated
Boss assembly: Screw-on
Boss material: Steel boss
Closing mechanism: UNSPRUNG
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 0.5 mm
Three-dimensional adjustment: +/-2mm side and +3/-1mm depth adjustment
