Blum 70T3650.TL UNSPRUNG 110° Half/Dual Overlay Cabinet Hinge

Blum 70T3550.TL UNSPRUNG 110° Half/Dual Overlay Cabinet Hinge

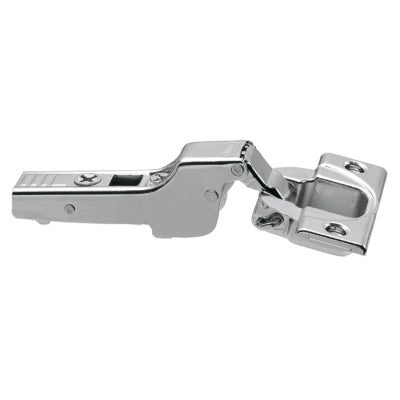

Blum 70T3550.TL ClipTop Half/Dual Overlay Screw-On Hinge 110° UNSPRUNG.
110° CLIP top Unsprung Overlay Hinge: Perfect for handle-less designs. Engineered specifically for dual overlay applications and seamlessly integrates with TIP-ON push-to-open mechanisms, this hinge ensures smooth and reliable door movement without the standard spring tension.
Door thickness: 15 to 24mm
Finish: Nickel Plated
Application: Half/Dual
Boss assembly: Screw-on
Opening Angle: 110 Deg
Closing mechanism: Unsprung
Side adjustment: +/-2 mm
Deepth adjustment: +3 /-2 mm convenient with spiral screw
