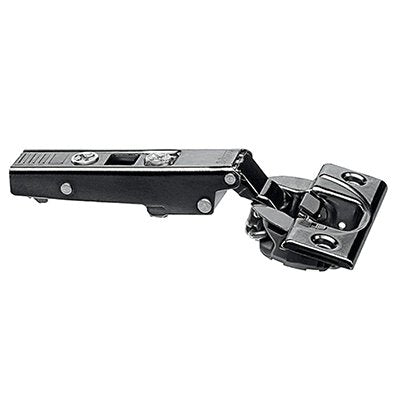

Blum 71B3550 OB Soft Close Onyx Black 110° Full Overlay Cabinet Hinge

Blum 71B3550-OB Soft Close 110° Full Overlay Cabinet Hinge

Blum 71B3550-OB Soft Close 110° Hinge

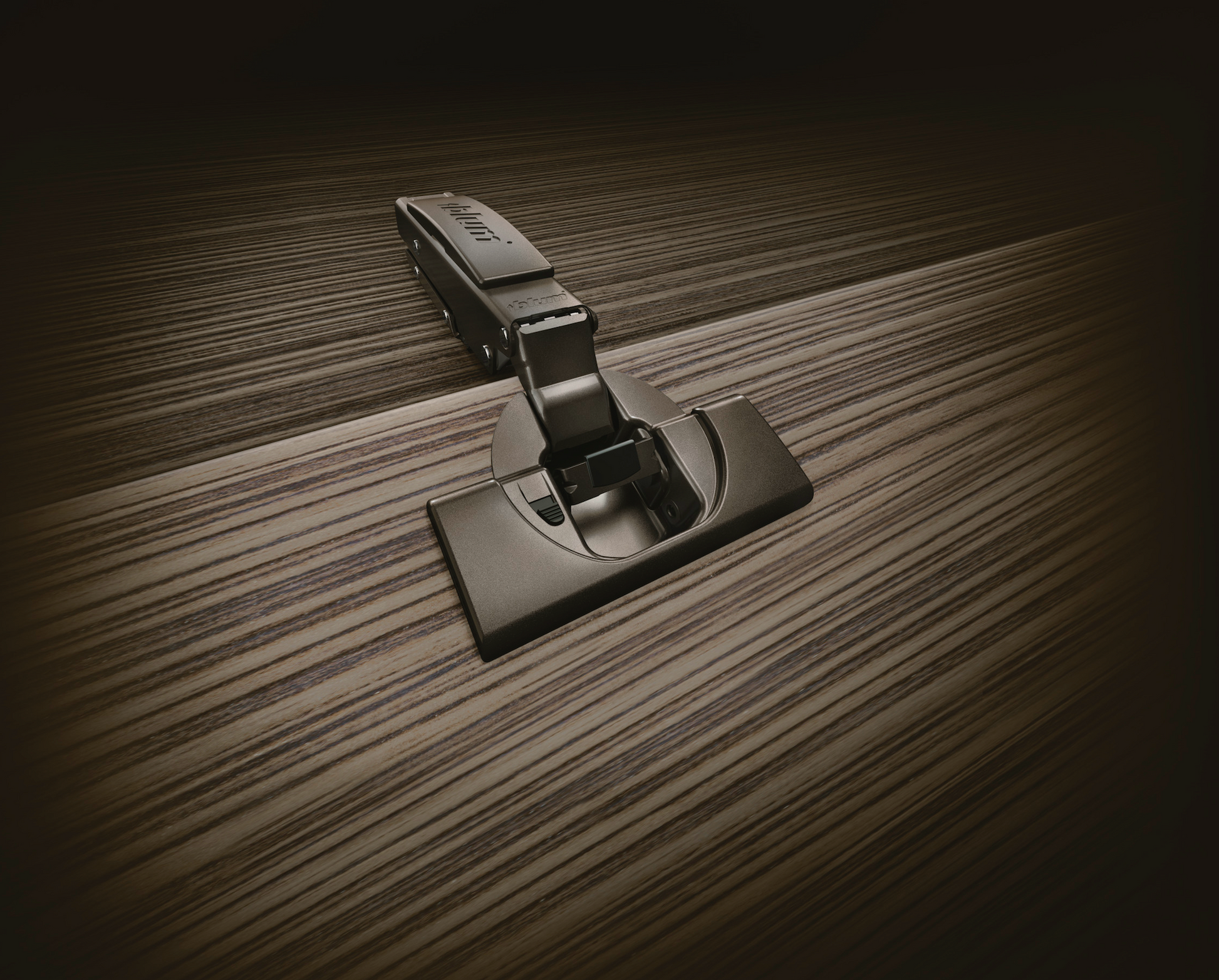

The ClipTop Blumotion hinge is setting new benchmarks. This sophisticated technology for perfect motion is now integrated into the smallest possible space, discreetly in the hinge boss. ClipTop Blumotion
In addition, the ClipTop Soft Close opens up furthermore design possibilities for doors up to 24mm thick.
Obviously, Blumotion for silent and effortless closing action.
Silent and effortless, that’s how furniture doors close with Soft Close, regardless of the front weight or closing speed.
Additionally, the relationship between the closing mechanism and soft close, a gentle push is all that’s required for closing - even for small and light doors.
Blumotion deactivation option For high quality of motion for small or light doors, the Blumotion function on one of the two hinges, can be easily deactivated. Simply slide the switch on the hinge boss, then close the door once, therefore, deactivation is now complete.
ClipTop Blumotion triple advantage: easy side, height, and infinitely variable depth adjustment with spiral screw.
What’s more, several mounting plates have cam height adjustments.
Brand: Blum
Application: Full Overlay
Finish: OB-Onyx Black
Material: Steel
Opening angle: 110 Degree
Blumotion device: when Integrated, must be deactivated or activated.
Depth Adjustment: +3mm / -2mm with a spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plates not included, available from other listing Mounting Plates
