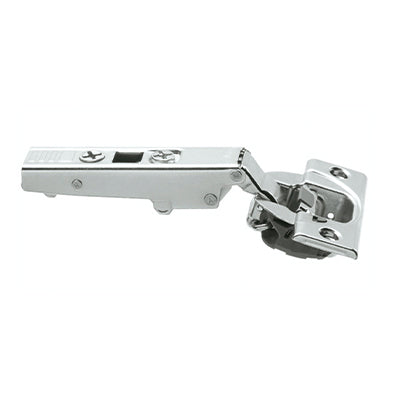

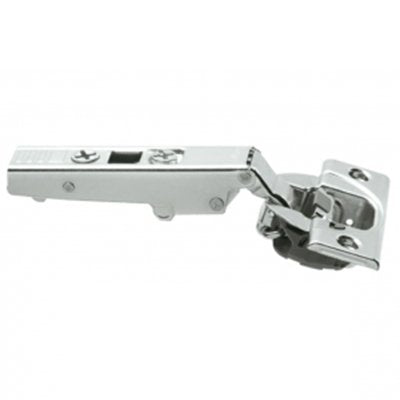

Blum 71B3550 Soft Close 110° Full Overlay Cabinet Hinge

Blum 71B3550 Soft Close 110° Full Overlay Cabinet Hinge

Blum 71B3550 Soft Close 110° Hinge
The ClipTop Blumotion hinge is setting new benchmarks: This sophisticated technology for perfect motion is now integrated into the smallest possible space, discreetly in the hinge boss. ClipTop Blumotion
ClipTop Soft Close opens up so many more design possibilities for doors even up to 24mm thick
Blumotion for silent and effortless closing action
Silent and effortless, that's how furniture doors close with Soft Close - regardless of the front weight or closing speed.
Additionally, the relationship between the closing and soft close mechanism requires a gentle push for closing - even for small, light doors.
Blumotion deactivation option For high quality of motion for small or light doors, the Blumotion function on one of the two hinges, can be easily deactivated. Simply slide the switch on the hinge boss, then close the door once.
ClipTop Blumotion triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw.
What’s more, several mounting plates have cam height adjustment.
Brand: Blum
Application: Full Overlay
Finish: Nickel Plated
Material: Steel
Opening angle: 110 Degree
Blumotion device: Integrated
Depth Adjustment: +3mm / -2mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plate not included, available from other listing Mounting Plates
