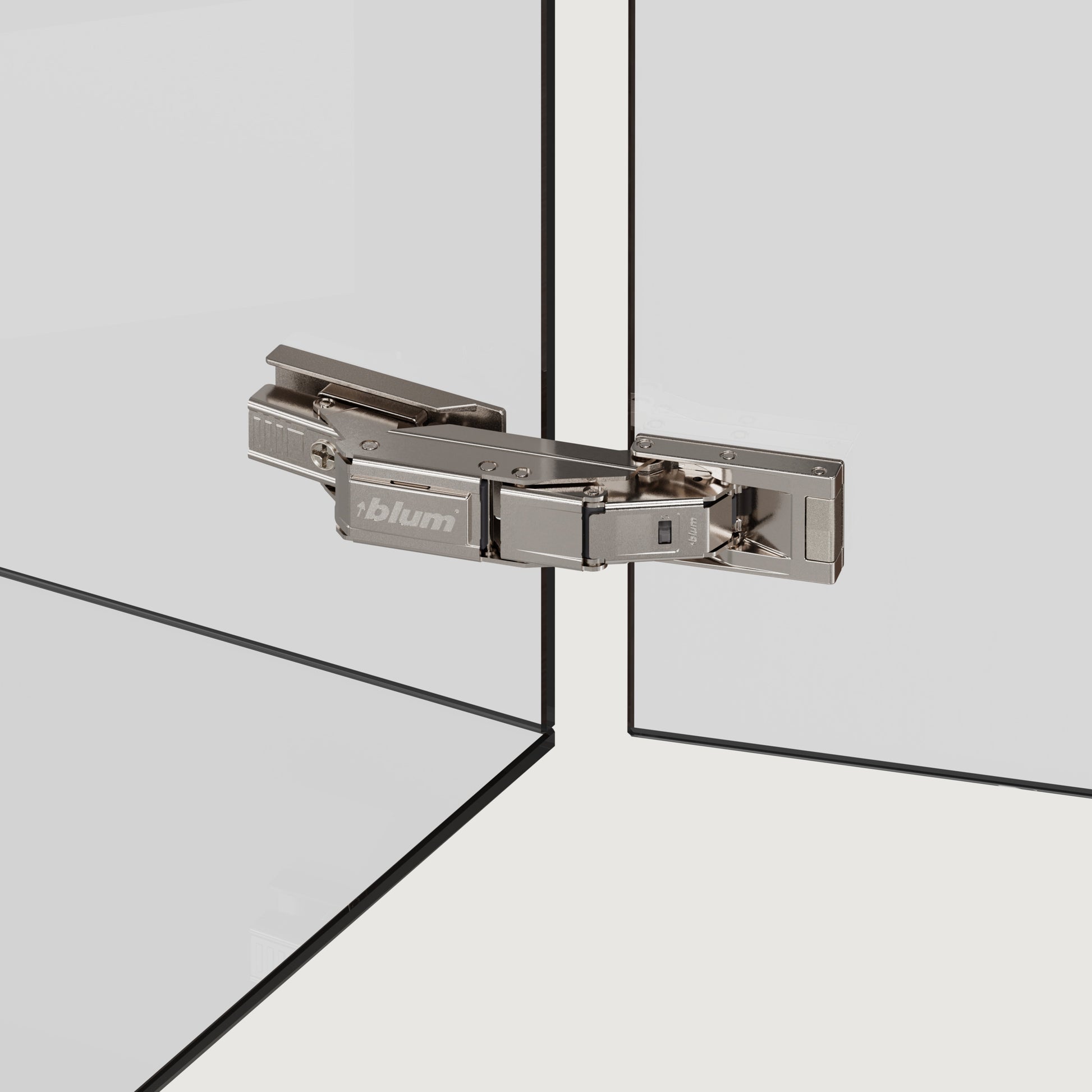

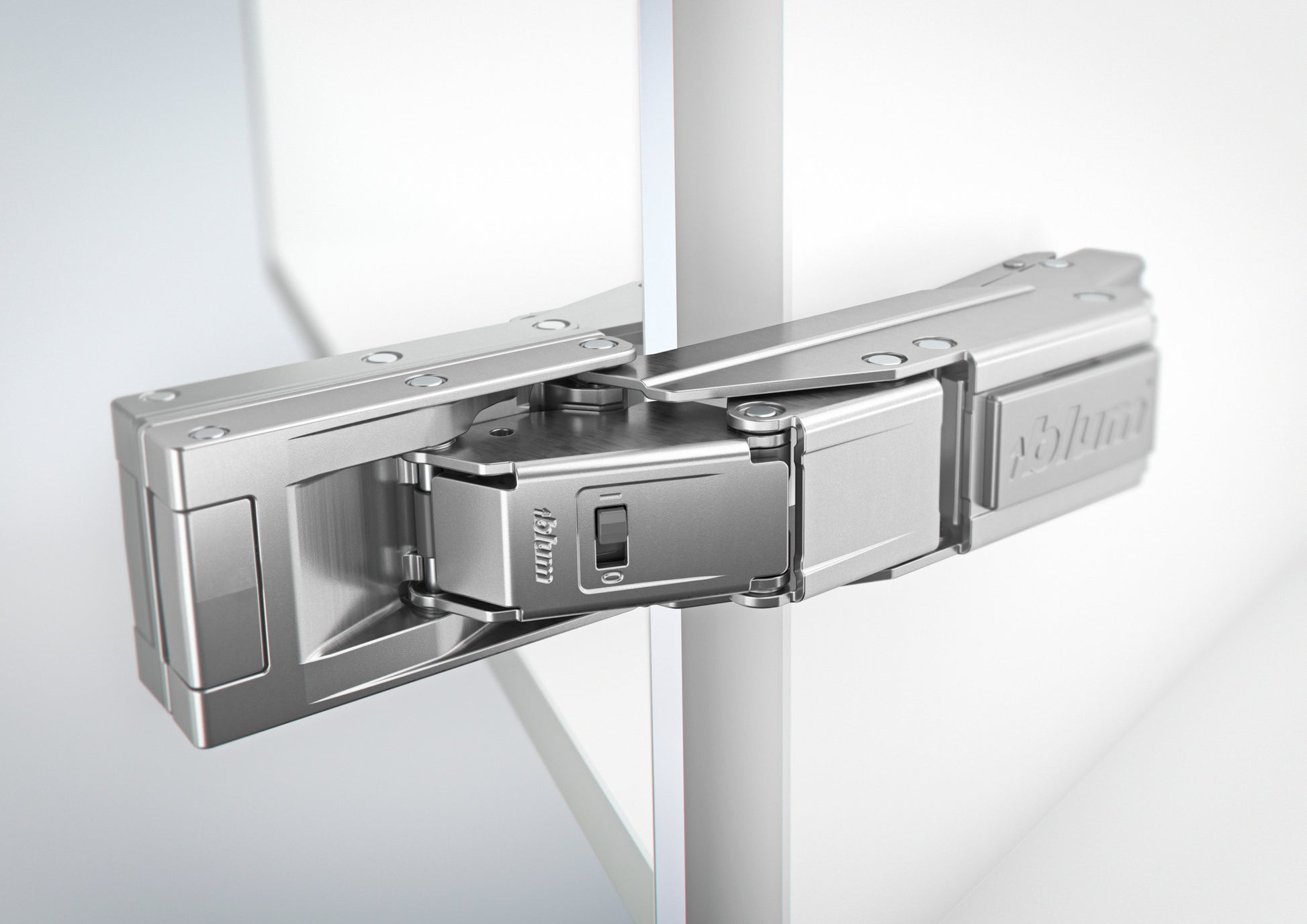

Blum 71B4500C Blumotion 110° Full Overlay Cristallo Glass Hinge

Blum 71B4500C ClipTop Blumotion Full Overlay Cristallo Glass Hinge 110°
Opening angle: 110°

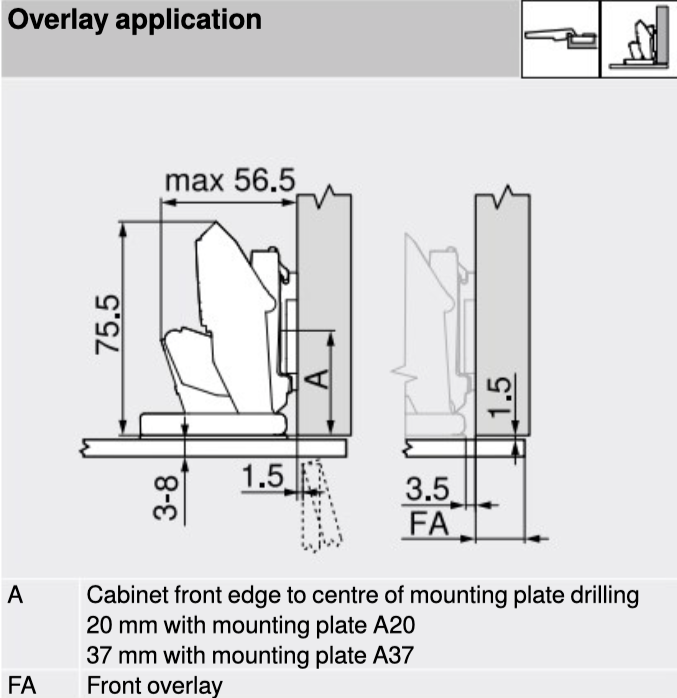

Cranking: Overlay/Twin & Inset application
Boss assembly: Screw-on
With Blumotion
Boss material: Steel boss
Closing mechanism: With spring
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm, convenient with spiral screw
Glass Thickness: 3 mm upto 8 mm

Cristallo Adhesion Mounting Plates sold separately
