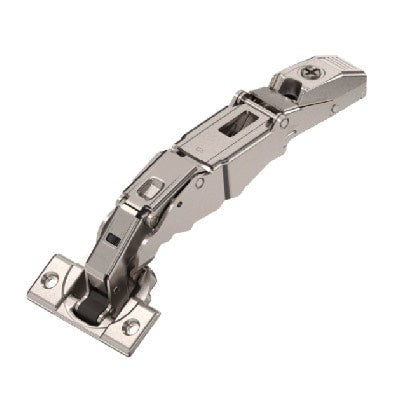

Blum 71B7550D Soft Close 125° Zero Protrusion Full Overlay Cabinet Hinge
Blum 71B7550D Soft Close 125° Zero Protrusion Full Overlay Cabinet Hinge
SKU:
Couldn't load pickup availability
Blum 71B7550D Soft Close 125° Zero Protrusion Full Overlay Cabinet Hinge
Blum 71B7550D Soft-Close 125° Hinge
The benefits of ClipTop Blumotion are integrated into the wide angle hinge with 0-protrusion. Blumotion 125° features an integrated soft-close mechanism and is suitable for special applications, e.g. mitred applications.
This hinges is suitable for cabinet doors which require wide opening angles or contain inner pull-outs.Hinge ensures the drawer can pull forward past the door, unhindered.
To restrict the opening angle of the hinge to 92°, fit nylon stop, if cabinet sides are 23mm up to 34mm. Blumotion gives silent and effortless soft closing function every time.
High quality of motion even with small or light doors, this function can be easily deactivated if required via a switch on the hinge boss.
Hinge for door thickness 20 to 24mm *can be up to 31mm if combined with a Blum 110° Opening Angle Stop 70T7553
71B7550 hinge for wider door openings specially tall units and units with drawers.
Brand: Blum
Application: Full Overlay
Finish: Nickel Plated
Material: Steel
Opening angle: 125 Degree
Blumotion device: Integrated
Depth Adjustment: +3mm / -2mm with a spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
Mounting Plates not included, available from other listings Mounting Plates
