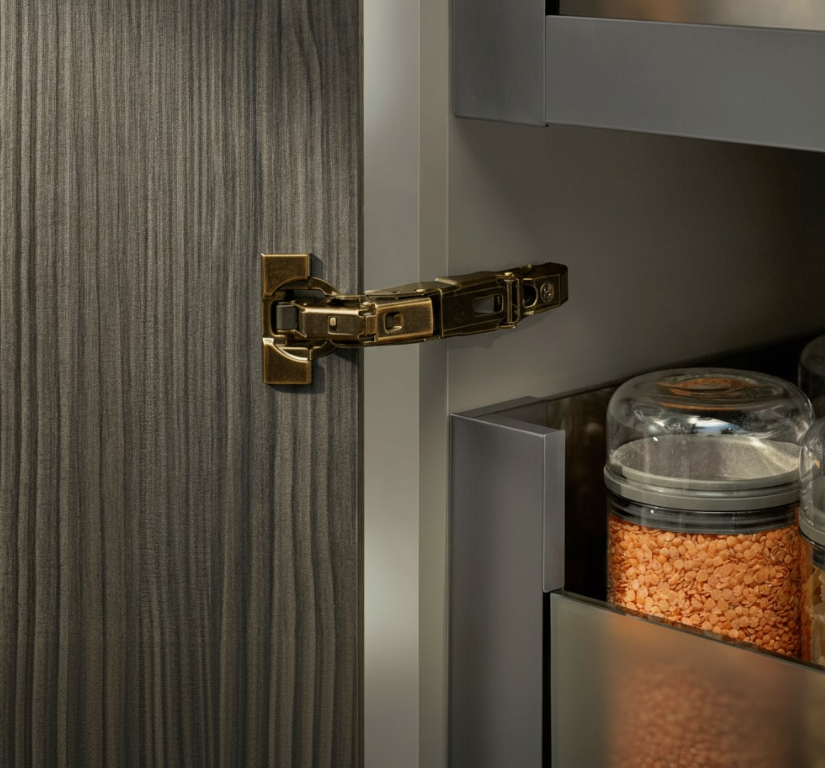

BLUM 71B7650 Soft Close 155° ANTIQUE BRASS 0-Protrusion Half Overlay Cabinet Hinge

Blum 71B7650 OB Soft Close 155° Antique Brass 0 Protrusion Full Overlay Cabinet Hinge

NEW EXCITING FINISH ANTIQUE BRASS-BESPOKE MADE
The benefits of CLIP top BLUMOTION are integrated into the wide angle hinge with 0-protrusion. CLIP top BLUMOTION 155° features an integrated soft-close mechanism and is suitable for special applications, e.g. mitred applications.
This hinges is suitable for cabinet doors which require wide opening angles or contain inner pull-outs. The zero-protrusion hinge ensures the drawer can pull forward past the door, unhindered. To restrict the opening angle of the hinge to 110°, fit nylon stop, if cabinet sides are 23mm up to 34mm.
Hinge for door thickness 20 to 24mm *can be up to 31mm if combined with a 92° Opening Angle Stop

71B7650 type -hinge for wider door openings and used when a two doors are meeting in the middle of carcass.
Brand: Blum
Application: Half/Dual Overlay
Application: Use 9mm Mounting Plate for Inset application
Finish: ANTIQUE BRASS Plated
Material: Steel
Opening angle: 155 Degree
Blumotion device: Integrated
Depth Adjustment: +3mm / -2mm with a spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plates not included, available from other listings Mounting Plates

This is a bespoke item, so the finish may vary slightly from the images shown. Please contact us before purchasing if you have any questions, as returns may not be possible.
If we do agree to return, refund ONLY will be provided as store credit.
In the event of insufficient stock, a replacement will be provided within 2-3 weeks.
if you are planning to purchase large number of hinges please purchase a sample.

This product does not come with a lifetime guarantee.
