Blum 71B7650 Soft Close 155° Black Zero Protrusion Half Overlay Cabinet Hinge

Blum 71B7650 Soft Close 155° Black Zero Protrusion Half Overlay Cabinet Hinge

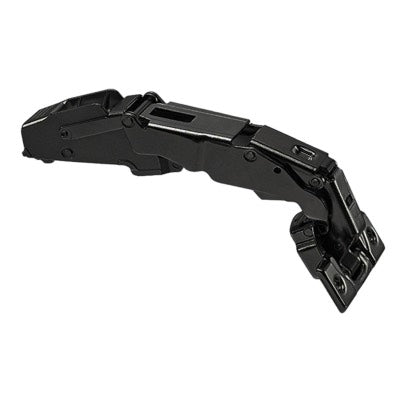

Blum 71B7650-OB Soft-Close 155° Hinge
The benefits of ClipTop Blumotion are integrated into the wide angle hinge with 0-protrusion.
The simple appearance provides a perfect combination of the easy, 3-dimensional front adjustment an the usual high quality of motion.
ClipTop Blumotion 155° features an integrated soft-close mechanism and is suitable for special applications, e.g. mitred applications.

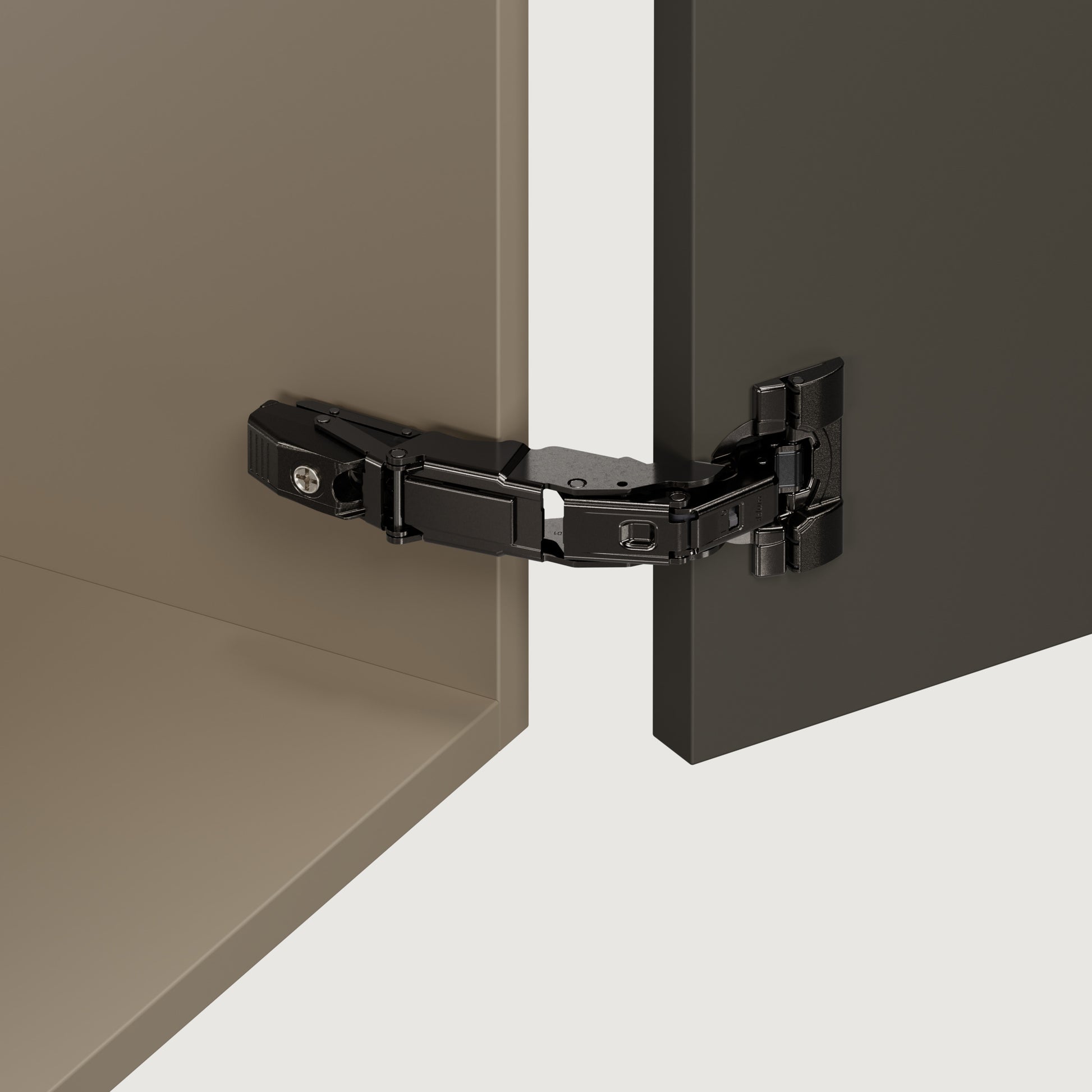

This hinges is suitable for cabinet doors which require wide opening angles or contain inner pull-outs.
The zero-protrusion hinge ensures the drawer can pull forward past the door, unhindered.
To restrict the opening angle of the hinge to 110°, fit nylon stop, if cabinet sides are 23mm up to 34mm.
Blumotion gives silent and effortless soft closing function every time. ClipTop Blumotion 155°
High quality of motion even with small or light doors, this function can be easily deactivated if required via a switch on the hinge boss.
Hinge for door thickness 20 to 24mm *can be up to 31mm if combined with a Blum 92° Opening Angle Stop for 155° Blumotion Hinge: 70T7553.09

71B7650-OB type -hinge for wider door openings and used when a two doors are meeting in the middle of carcass.
Brand: Blum
Application: Half/Dual Overlay
Application: Use 9mm Mounting Plate for Inset application
Finish: Onyx Black
Material: Steel
Opening angle: 155 Degree
Blumotion device: Integrated
Depth Adjustment: +3mm / -2mm with a spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plates not included, available from other listings Mounting Plates
