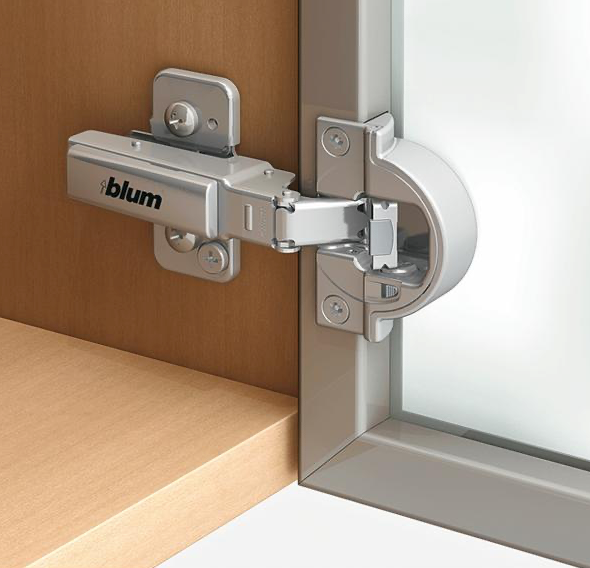

Blum 71B950A Blumotion 95° Overlay Aluminium Frame Cabinet Hinge

Blum 71B970A ClipTop Blumotion Overlay Aluminium Frame 95° Hinge

Blum 71B950A ClipTop Blumotion Overlay Aluminium Frame Hinge 95°, Screw-On
A high quality profile hinge for doors with aluminium profiles with integrated Blumotion

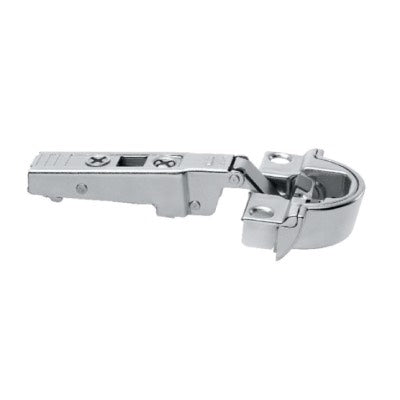

Blum 71B950A Aluminium Frame Hinge

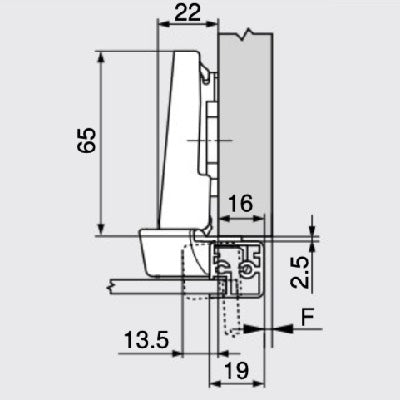

Suitable for doors up-to 24 mm
Opening angle: 95°
Cranking: Overlay Application
Boss assembly: Screw-on
Device: With Blumotion
Boss material: Steel boss
Finish: Nickel Plated
Closing mechanism: With spring
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm

Mounting plates to be purchased separately Mounting Plates

ClipTop stands for enhanced adjustment and assembly ease, trustworthy function and attractive design.
Every door equipped with Blum hinges opens and closes with reliable ease.
The CLIP mechanism - proven a million times over.

This Blum Black onyx Aluminium door Frame Hinges has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mm
Opening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx Black
Closing mechanism: With spring.This Blum 71T950 metal Frame Hinge has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mmOpening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx BlackClosing mechanism: With spring.This Blum 71T950 onyx Frame Hinge has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mmOpening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx BlackClosing mechanism: With spring
