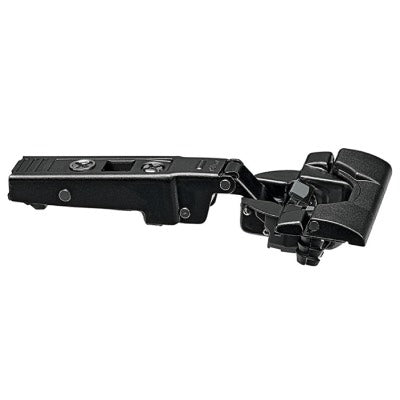

Blum 71B9590 OB INSERTA Soft Close 95° Onyx Black Thick Door Overlay Profile Hinge

Blum 71B9590 OB INSERTA Soft Close 95° Onyx Black Thick Door Overlay Profile Hinge

Blum 71B9590-OB INSERTA Soft Close 110° Hinge
The ClipTop Blumotion hinge is setting new benchmarks: This sophisticated technology for perfect motion is now integrated into the smallest possible space, discreetly in the hinge boss. ClipTop Blumotion
ClipTop Soft Close opens up furthermore design possibilities for doors up to 32mm thick.
This is featuring tool free hinge to door assembly through the INSERTA mechanism.
Silent and effortless, that’s how furniture doors close with Soft Close, regardless of the front weight or closing speed.
Additionally, the relationship between the closing and soft close mechanism requires a gentle push for closing - even for small, light doors.
The function on hinges, can be easily deactivated via a switch on hinge boss
Simply slide the switch on the hinge boss, then close the door once, therefore, deactivation is now complete.
ClipTop Blumotion triple advantage: easy side, height, and infinitely variable depth adjustment with spiral screw.
Hinge for thick doors and doors with profile
Brand: Blum
Application: Full Overlay
Type: INSERTA Tool free assembly
Finish: Onyx Black
Material: Steel
Opening angle: 95 Degree
Blumotion device: When Integrated, must be deactivated or deactivated.
Depth Adjustment: +3mm / -2mm with a spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plates not included, available from other listings Mounting Plates
