Blum 71B9650 Soft Close 95° Thick Door Half Overlay Profile Hinge

Blum 71B9650 Soft Close 95° Thick Door Half Overlay Profile Hinge

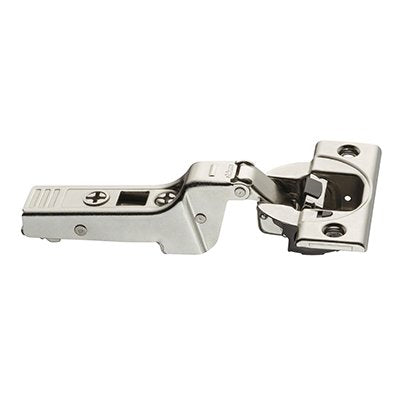

Blum 71B9650 Soft Close 95° Hinge
The ClipTop Blumotion hinge is setting new benchmarks: This sophisticated technology for perfect motion is now integrated into the smallest possible space, discreetly in the hinge boss. ClipTop Blumotion
ClipTop Soft Close opens up so many more design possibilities for doors even up to 32mm thick
Blumotion for silent and effortless closing action
Silent and effortless, that’s how furniture doors close with Soft Close - regardless of the front weight or closing speed.
Additionally, the relationship between the closing and soft close mechanism requires a gentle push for closing - even for small, light doors.
The function on hinges, can be easily deactivated via a switch on hinge boss
Simply slide the switch on the hinge boss, then close the door once.
ClipTop Blumotion triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw.

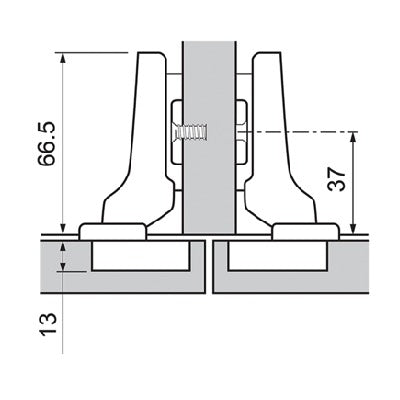

This 71B9650 hinge is used when a two doors are meeting in the middle of carcass.
Hinge for thick doors and doors with profile
Brand: Blum
Application: Half/Dual Overlay
Finish: Nickel Plated
Material: Steel
Opening angle: 95 Degree
Blumotion device: Integrated
Depth Adjustment: +3mm / -2mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plate not included, available from other listing Mounting Plates
