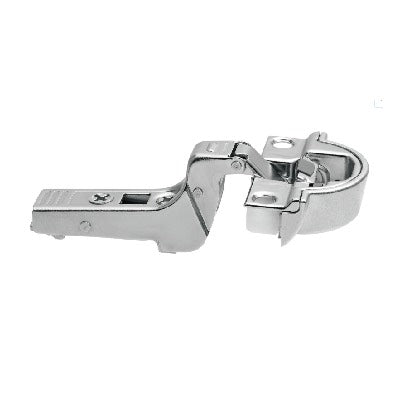

Blum 71B970A Blumotion 95° Inset Aluminium Frame Hinge

Blum 71B970A ClipTop Blumotion Inset Aluminium Frame 95° Hinge

Blum 71B970A ClipTop Blumotion Inset Aluminium Frame Hinge 95°, Screw-On
A high quality profile hinge for doors with aluminium profiles with integrated Blumotion
Suitable for doors up-to 24 mm
Opening angle: 95°
Cranking: Inset Application
Boss assembly: Screw-on
Device: With Blumotion
Boss material: Steel boss
Finish: Nickel Plated
Closing mechanism: With spring
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm

Mounting plates to be purchased separately Mounting Plates

ClipTop stands for enhanced adjustment and assembly ease, trustworthy function and attractive design.
Every door equipped with Blum hinges opens and closes with reliable ease.
The CLIP mechanism - proven a million times over.

This Blum Black onyx Aluminium door Frame Hinges has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mm
Opening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx Black
Closing mechanism: With spring.This Blum 71T950 metal Frame Hinge has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mmOpening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx BlackClosing mechanism: With spring.This Blum 71T950 onyx Frame Hinge has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mmOpening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx BlackClosing mechanism: With spring
