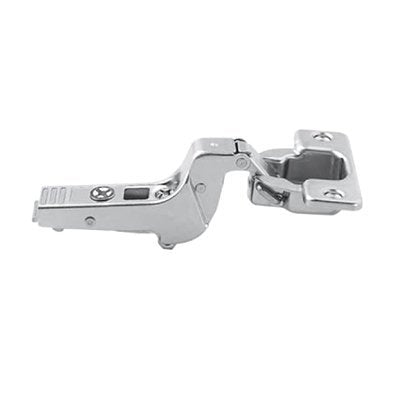

Blum 71T3750 Sprung 110° Inset Cabinet Hinge

Blum 71T3750 Sprung 110° Inset Cabinet Hinge.

ClipTop sprung opens up so many more design possibilities for doors even up to 24mm thick.
The 71T3750 Blum hinge system with the reliable ClipTop mechanism. ClipTop
Blum hinges combine function and ease of use with tool free door to cabinet assembly.
Use in harmony with the 71B3750 Blumotion ClipTop hinge, saving the expense of using ClipTop Blumotion on every hinge.
It offers resistance free spiral-tech depth adjustment.
An additional locking pin means the hinge performs perfectly even when subjected to extraordinary loads, offering the user easy installation.
Quick Assembly: The innovative design allows for tool-free front attachment and detachment, eliminating the need for screws between the hinge and the plate.
ClipTop sprung triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw.
This Hinge is design for inset doors.

Blum 71T3750 Sprung 110° Inset Cabinet Hinge
Brand: Blum
Application: Inset
Finish: Nickel Plated
Material: Steel
Opening angle: 110 Degree
Cup size: 35mm
Blumotion device: NOT-Integrated
Closing With Spring
Design for wood screws 3.5/4.0 x 17 mm
Depth Adjustment: +3mm / -2mm with spiral screw
Side Adjustment: +/- 2mm
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.

Mounting Plate not included, available from other listing Mounting Plates
