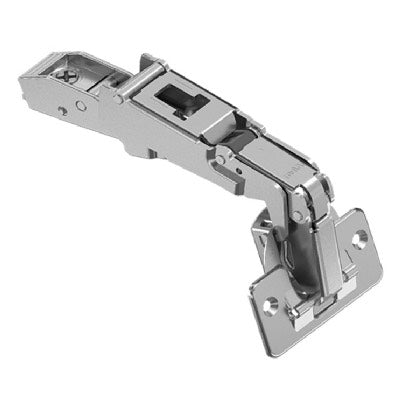

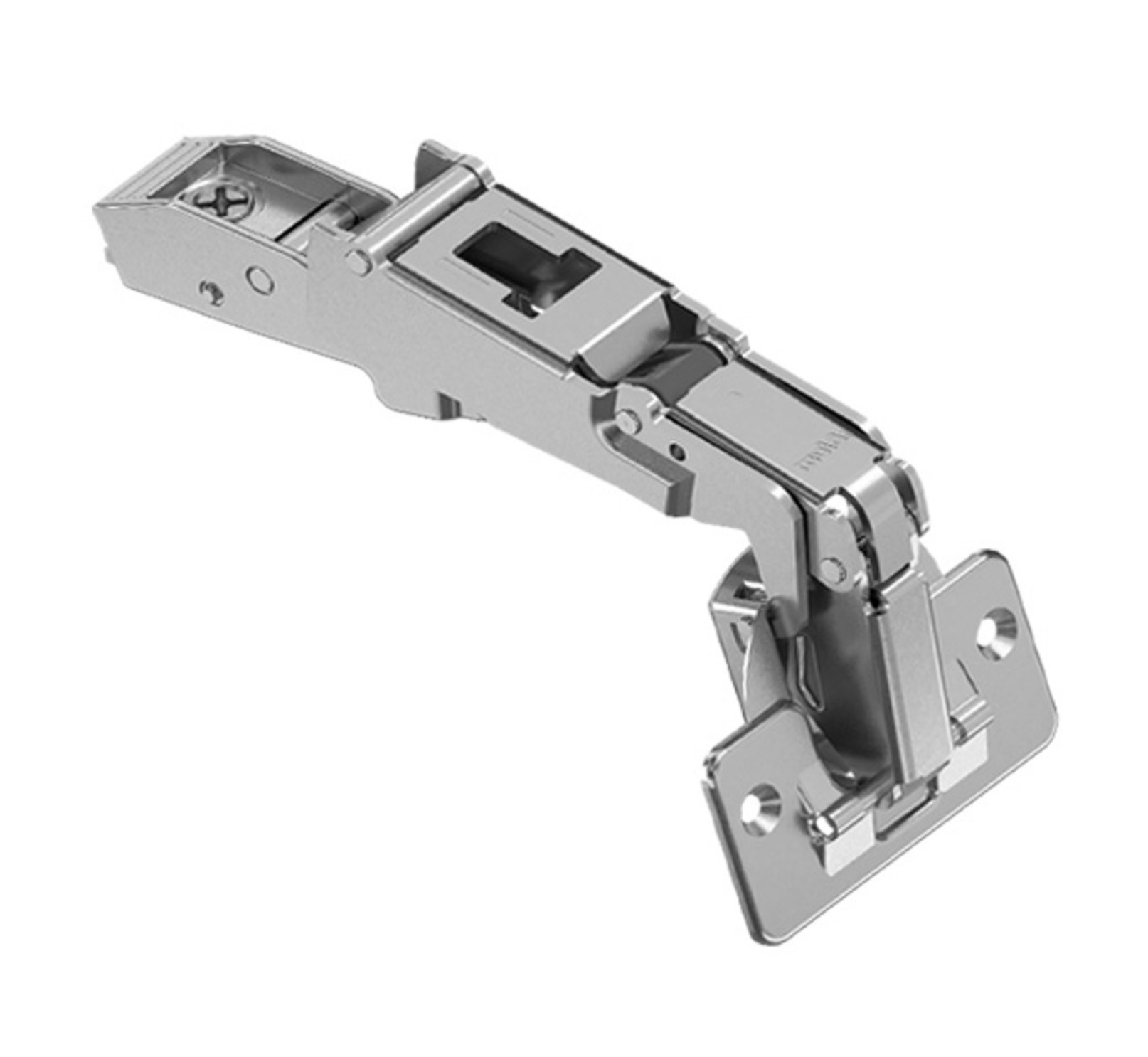

Blum 71T6550 Sprung 170° Full Overlay Wide Angle Cabinet Hinge

Blum 71T6550 ClipTop Full Overlay 170 Degree Hinge
This 170 degree hinge aides access to the cabinet’s contents, with its wide opening angle. ClipTop Wide angle hinge 71T6550
Opening angle: 170 degree
Cranking: Full Overlay
Boss assembly: Screw-on
Material: Steel
Closing mechanism: with spring
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm, convenient with spiral screw
