Blum

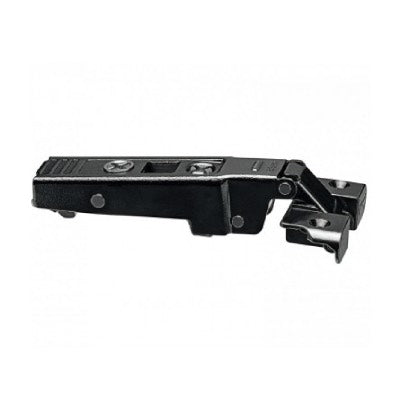

Blum 71T950A Sprung Onyx Black 95° Overlay Aluminium Frame Hinge

Blum 71T950A Sprung Onyx Black 95° Overlay Aluminium Frame Hinge

Regular price £3.98 excl. VAT
Regular price £3.98 excl. VAT Sale price £3.98 excl. VAT
Sale Sold out
Shipping calculated at checkout.

Blum 71T950A ClipTop Onyx Black Sprung Overlay Aluminium Frame Hinge 95°, Screw-On


This Blum-71T950A Black Aluminium Frame Hinge has a high quality profile hinge for doors with aluminium profiles.
Suitable for doors up-to 24 mm
Opening angle: 95°
Cranking: Overlay Application
Boss assembly: Screw-on
Device: Without Blumotion
Boss material: Steel boss
Finish: Onyx Black
Closing mechanism: With spring
Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm

Mounting plates to be purchased separately Mounting Plates

ClipTop stands for enhanced adjustment and assembly ease, trustworthy function and attractive design.
Every door equipped with Blum hinges opens and closes with reliable ease. The CLIP mechanism - proven a million times over.

This Blum Black onyx Aluminium door Frame Hinges has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mm
Opening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx Black
Closing mechanism: With spring.This Blum 71T950 metal Frame Hinge has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mmOpening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx BlackClosing mechanism: With spring.This Blum 71T950 onyx Frame Hinge has a high quality profile hinge for doors with aluminium profiles.Suitable for doors up-to 24 mmOpening angle: 95°Cranking: Overlay ApplicationBoss assembly: Screw-onDevice: Without BlumotionBoss material: Steel bossFinish: Onyx BlackClosing mechanism: With spring
