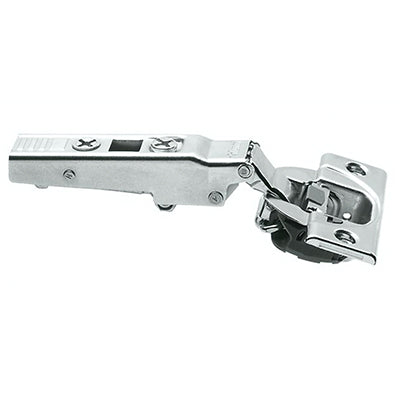

Blum 73B3550 Blumotion 110° Full Overlay Hinge Thick Door

Blum 73B3550 Blumotion 110° Full Overlay Hinge Thick Door
73B3550 - Overlay Blumotion hinges for larger cabinet overlays of up to 20mm, ideal when using veneered cabinet sides for manufacturing.
Blumotion function can be easily deactivated if required via a switch on the hinge boss.
Door thickness: 16 to 24mm
Application: Overlay
Opening angle: 110°
Blumotion soft close built in
Boss type: Screw-on
Required fixings: Chipboard screws Ø3.5 x 17mm
Hinge material: Steel/Nickel plated
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop hinges combined with Blum’s wide range of mounting plates offer height adjustment.
ClipTop mechanism removes the need to screw the hinge to the plate.
