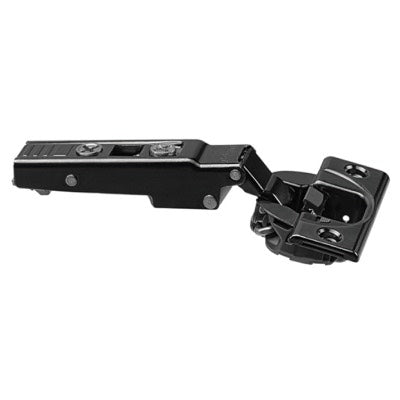

Blum 73B3550 Onyx Black Blumotion 110° Full Overlay Hinge Thick Door
Blum 73B3550 Onyx Black Blumotion 110° Full Overlay Hinge Thick Door
Regular price
£3.66 excl. VAT
Regular price
£3.66 excl. VAT
Sale price
£3.66 excl. VAT
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Blum 73B3550 Onyx Black Blumotion 110° Full Overlay Hinge Thick Door
73B3550 - Overlay Blumotion hinges for larger cabinet overlays of up to 20mm, ideal when using veneered cabinet sides for manufacturing.
Blumotion function can be easily deactivated if required via a switch on the hinge boss.
Door thickness: 16 to 24mm
Application: Overlay
Opening angle: 110°
Blumotion soft close built in
Boss type: Screw-on
Required fixings: Chipboard screws Ø3.5 x 17mm
Hinge material: Steel
Finish: Onyx Black
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop mechanism removes the need to screw the hinge to the plate.
73B3550 - Overlay Blumotion hinges for larger cabinet overlays of up to 20mm, ideal when using veneered cabinet sides for manufacturing.
Blumotion function can be easily deactivated if required via a switch on the hinge boss.
Door thickness: 16 to 24mm
Application: Overlay
Opening angle: 110°
Blumotion soft close built in
Boss type: Screw-on
Required fixings: Chipboard screws Ø3.5 x 17mm
Hinge material: Steel
Finish: Onyx Black
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop mechanism removes the need to screw the hinge to the plate.
