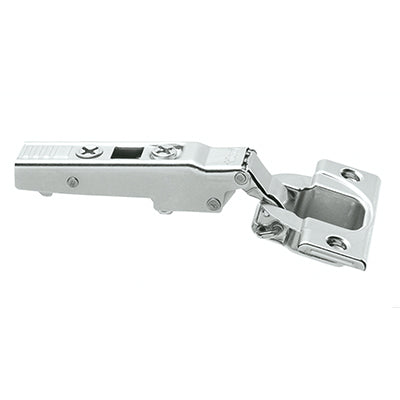

Blum 73T3550 Sprung 110° Full Overlay Thick Door Hinge

Blum 73T3550 Sprung 110° Full Overlay Hinge Thick Door
73B3550 - Overlay SPRUNG Hinges for larger cabinet overlays of up to 20mm, ideal when using veneered cabinet sides for manufacturing.
Door thickness: 16 to 24mm
Application: Overlay
Opening angle: 110°
Closing Type:Sprung
Boss type: Screw-on
Required fixings: Chipboard screws Ø3.5 x 17mm
Hinge material: Steel/Nickel plated
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw.
ClipTop hinges combined with Blum’s wide range of mounting plates offer height adjustment.
ClipTop mechanism removes the need to screw the hinge to the plate.
