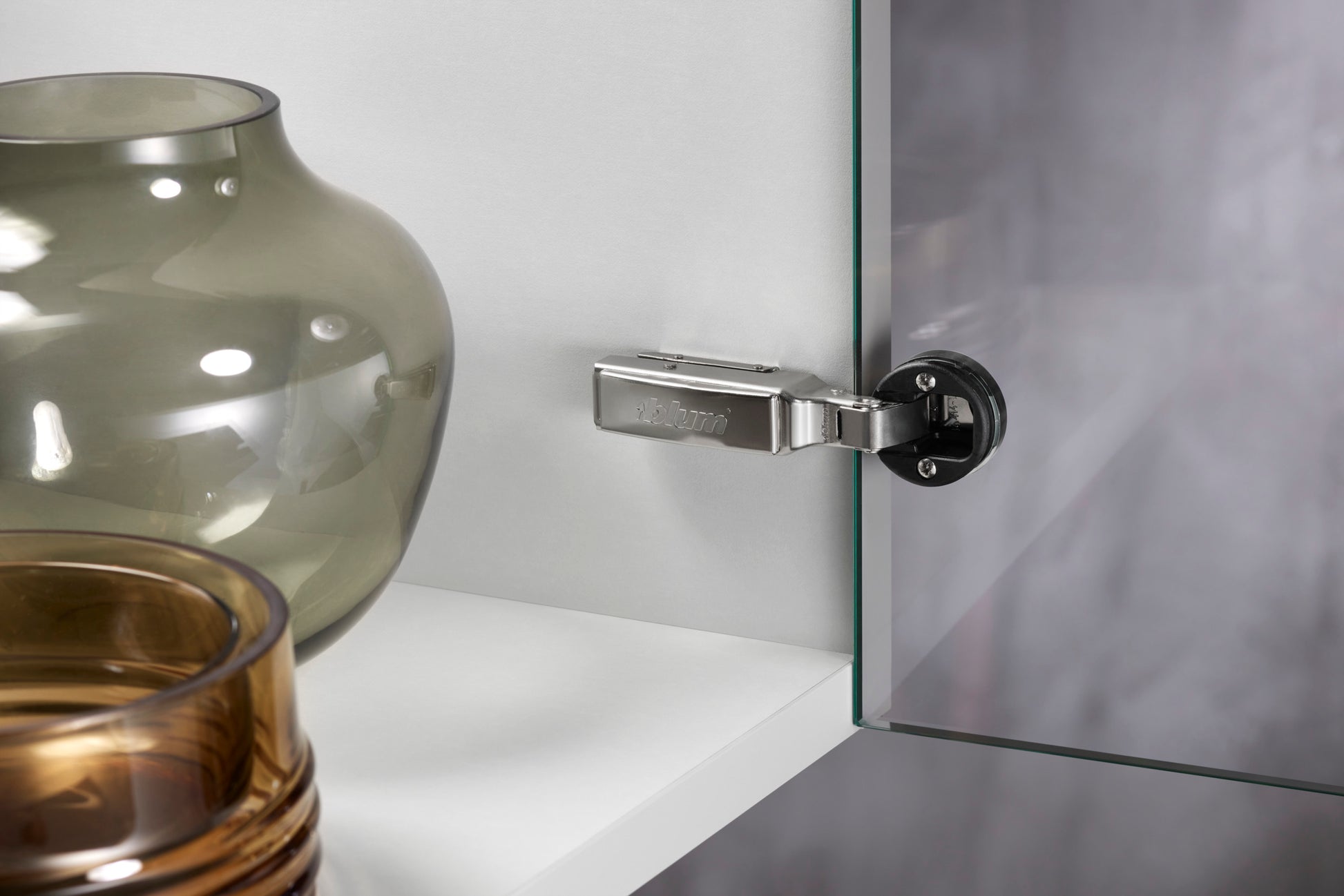

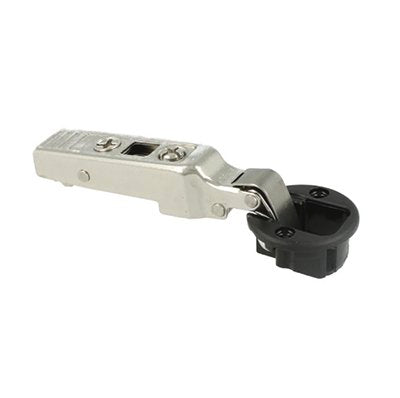

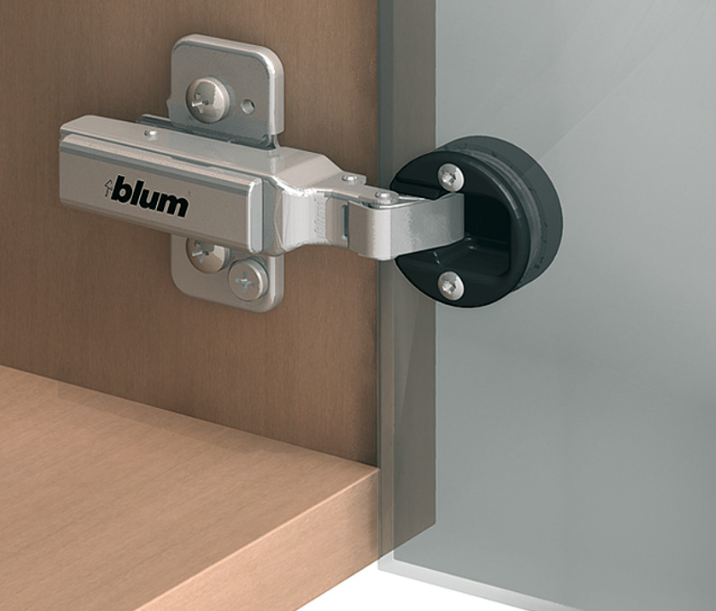

Blum 75T4100 ClipTop Full Overlay Glass Door Hinge 94°, Screw-On
ClipTop glass door hinge
Opening angle: 94°

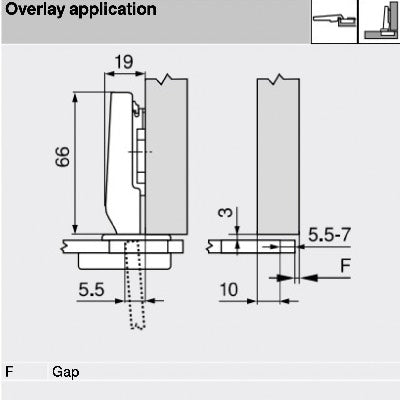

Cranking: Overlay application
Assembly: Screw-On
Boss assembly: Screw-on
Boss material: Nylon boss
Closing mechanism: with spring
Side adjustment: + 0.5/- 3.5 mm
Depth adjustment: +/- 2 mm, convenient with spiral screw
