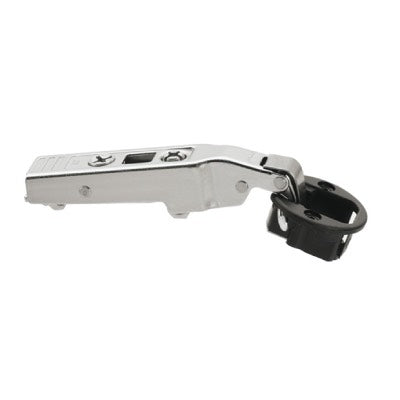

Blum 79A4105.T ClipTop Angled 20° Full Overlay Glass Door Cabinet Hinge

Blum 79A4105.T ClipTop Angled Full Overlay Glass Door 20° Hinge
ClipTop glass door hinge
Door thickness: 4.5 - 7.0mm
Opening angle: 94°
Cabinet angle: +20°
Cranking: Overlay application
Assembly: Screw-On
Boss assembly: Screw-on
Boss material: Nylon boss
Closing mechanism: with spring
Side adjustment: + 0.5/- 3.5 mm
Depth adjustment: +/- 2 mm, convenient with spiral screw
