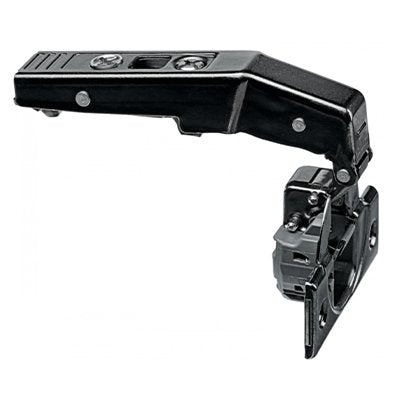

Blum 79B9550 OB Onyx Black Blumotion 95° Inset Blind Corner Hinge

Blum 79B9550 OB ONYX BLACK ClipTop Blumotion INSET Blind Corner Hinge 95°,

Designed for corner cabinets without a corner post, the Blum 79B9550 blind corner hinge with integrated BLUMOTION soft close is used with a 3mm mounting plate (not included) to align the back of the door with the fixed panel. The mounting plate fixing position is set 21.5mm from the front edge of the fixed panel. This hinge is suitable for cabinet doors between 16 and 28mm thick and cannot be combined, with non-soft-close hinges on the same door.
BLUMOTION technology provides a silent, soft-close action, delivering consistent performance even on light or small cabinet doors. The soft-close function can be deactivated via a switch on the hinge boss if required.
Door thickness: 16 to 28mm
Application: Inset
Finish:  Onyx Black
Material: Steel
Opening angle: 95°
BLUMOTION soft close built in
Required fixings: Ø3.5 x 16mm Screws

Side adjustment: +/- 2 mm
Depth adjustment: + 3/- 2 mm, convenient with spiral screw
