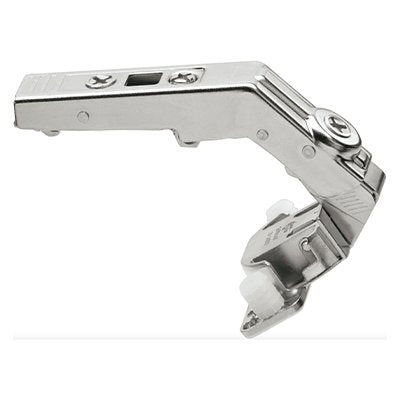

Blum 79T8530 Sprung 60° Bi-Fold Cabinet Hinge

Blum 79T8500 ClipTop Bi-Fold Hinge 60° Knock-In

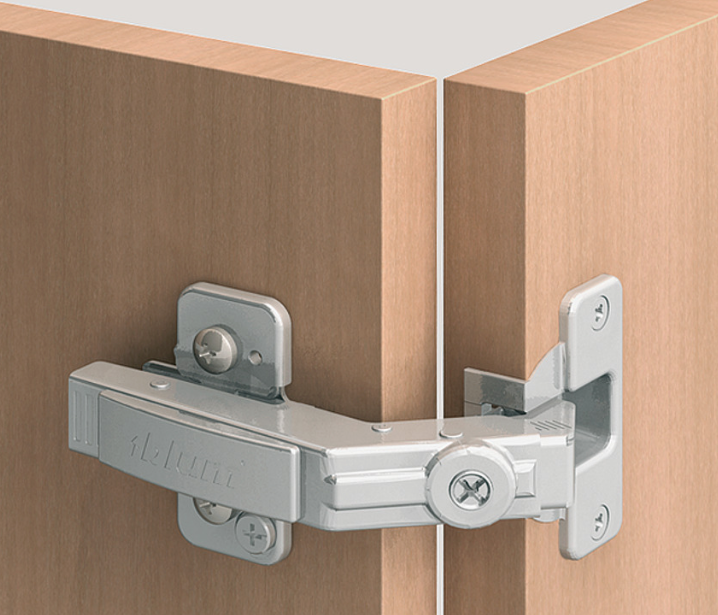

This high-performance Blum 60° CLIP top hinge in a durable nickel-plated finish is ideal for bi-fold door applications, especially in corner cabinets where smooth articulation and compact motion are critical.
For use in combination with 155 or 170 Degree hinges.

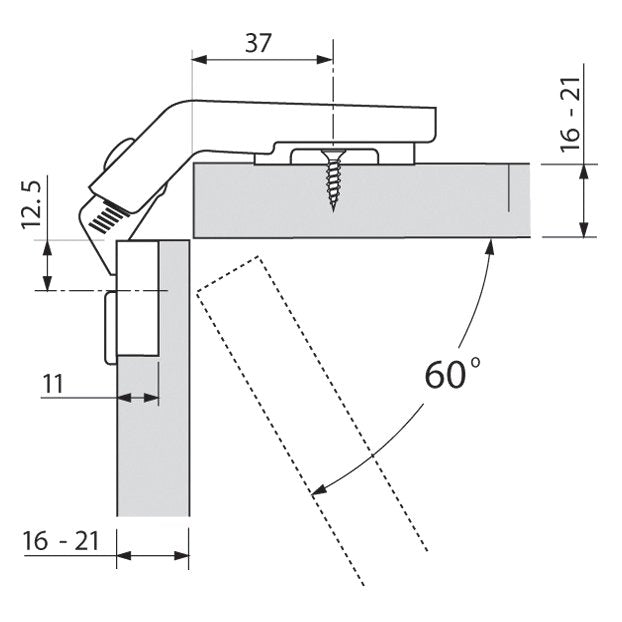

Opening angle:60°
Boss assembly: Knock-In with dowels
Boss material: Zinc boss
Finish: Nickel Plated
Closing mechanism: with spring
Side adjustment: +/- 2 mm

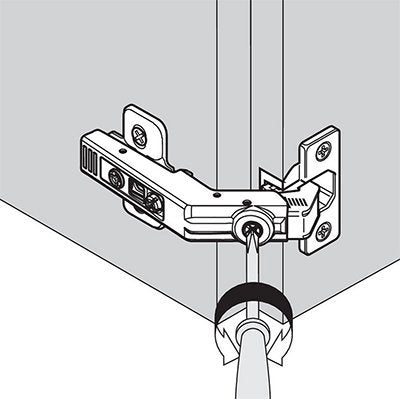

Depth adjustment: + 3/- 2 mm, convenient with spiral screw
Gap adjustment: + 7.2/- 4.2 mm
Suitable for door: 15 mm to 23 mm
