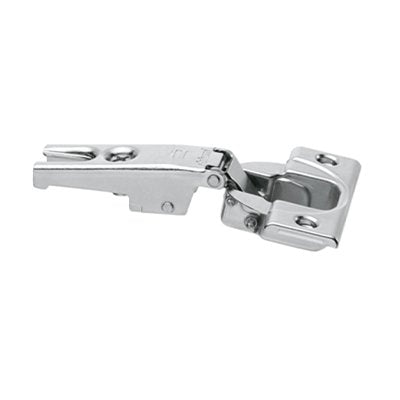

Blum 91K9550 MODUL Built-In Refrigerator Cabinet Hinge

Blum 91K9550 MODUL Refrigerator Door Hinge 95°

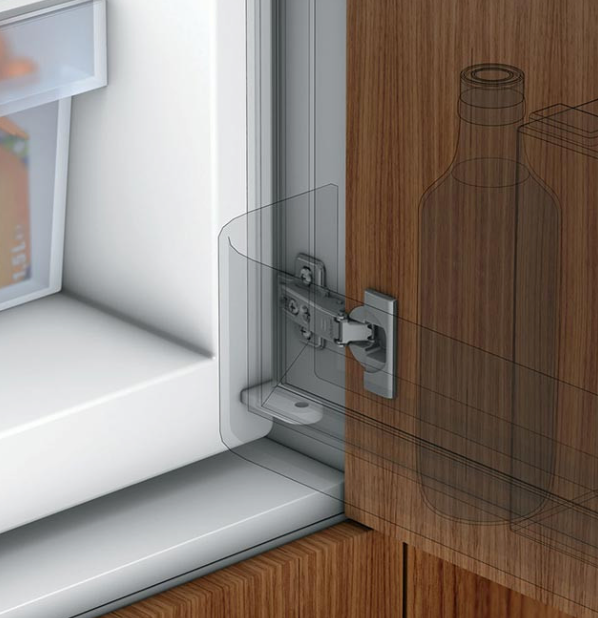

This MODUL Refrigerator Door Hinge is designed to integrate appliances seamlessly into cabinets. The 19mm arm design provides easier appliance access over standard 21.5mm hinges. Its reduced depth allows for smooth, 3-dimensional door adjustments, ensuring a perfect fit.
Shallow hinge arm height
Opening angle: 95 Degree

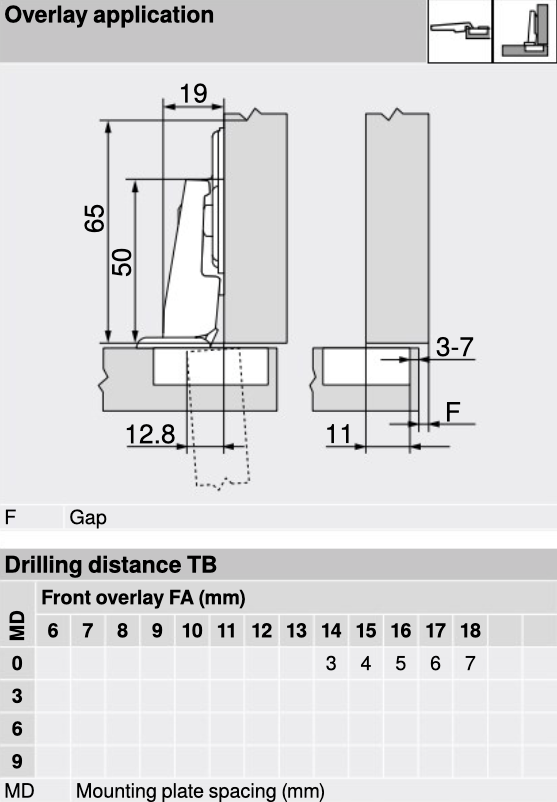

Cranking: Overlay application
Closing mechanism with spring
Side adjustment +/- 2mm
Depth adjustment +/- 2mm with screws
Can be only combined with mounting plate 194K6100E
