Blum 91M2750 MODUL 100° Inset Cabinet Hinge

Blum 91M2750 MODUL 100° Inset Hinge

Its trusted slide-on and screw-fix mechanism guarantees a secure fit, while the integrated pull-out stop offers added safety against accidental door detachments during assembly or adjustments.
With its 3-dimensional adjustment, ensure every door displays impeccable gap alignment, reflecting Blum's commitment to precision and quality.
MODUL's combined slide-on and screw-fix feature has proven its worth for many years.
The functional hinge is very popular with furniture makers.

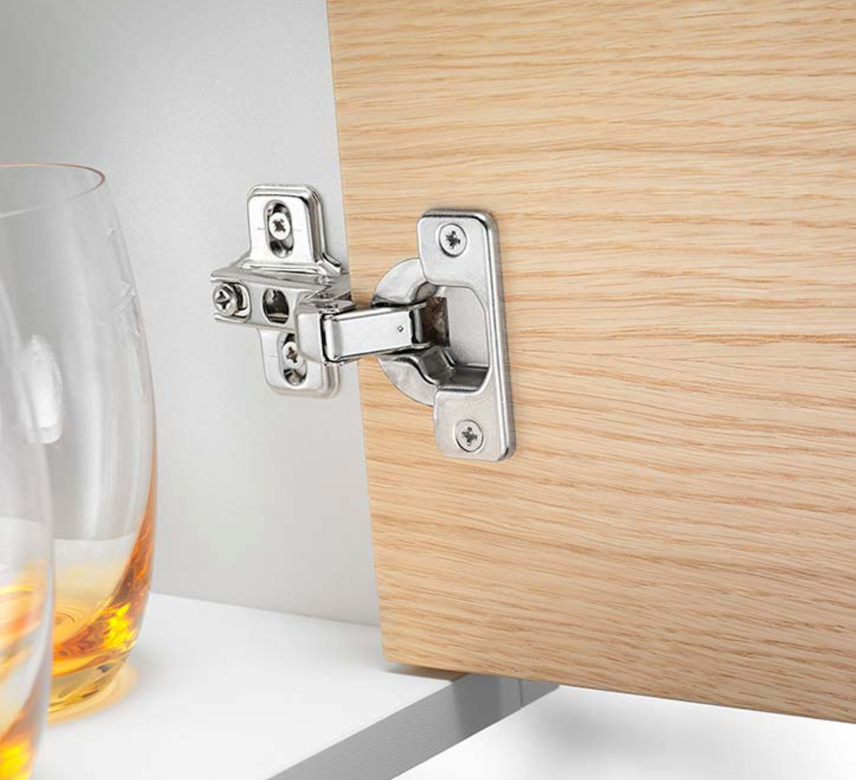

The Blum 91M2750 MODUL 100°-inset hinge delivers easy slide-on front to cabinet assembly.
Its three-dimensional adjustment feature guarantees good gap alignment.
And an integrated pull-out stop ensures that doors are held in place.

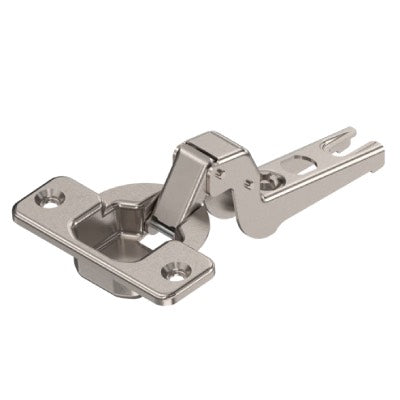

Blum 91M2750 MODUL 100°-inset hinge
Door thickness: 16 to 24mm
Application: Inset
Opening angle: 100°
Boss assembly: Screw-on
Required fixings: Ø3.5 x 15mm Screws
Hinge material: Steel/Nickel plated
Closing mechanism: Spring-assisted
Three-dimensional adjustment: +/-2mm side | +/-2mm depth | height via mounting plates

Easy and efficient slide-on assembly
Three-dimensional door adjustment
Pull-out stop
Blum Assembly MODUL

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
Templates or jigs are available from our listing under Tools
