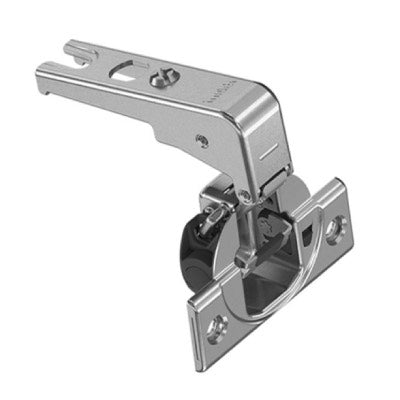

Blum 99B9550 MODUL Blind Corner Soft Close Inset Cabinet Hinge

Blum 99B9550 MODUL Blind Corner Soft Close Inset Hinge

Hinges with integrated soft-close Blumotion for small blind corner applications
Designed for use with special 3mm Mounting plate 199.8130 to be purchased separately. Blum 199.8130 MODUL Cruciform Mounting Plate for Blind Corner
MODUL's combined slide-on and screw-fix feature has proven its worth for many years.
The functional hinge is very popular with furniture makers.
The Blum 99B9550 MODUL blind-corner hinge delivers easy slide-on front to cabinet assembly.
Its three-dimensional adjustment feature guarantees good gap alignment.
And an integrated pull-out stop ensures that doors are held in place.

Blind corner applications
High quality of motion even with small/light furniture doors, the function can be easily deactivated if required via a switch on the hinge boss.
Hinge for refrigerator doors connected with a sliding mechanism

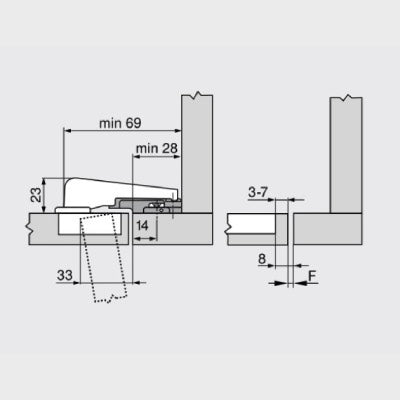

Hinge dimensions and gap calculation based on factory setting with plate spacing 3mm
Blum 99B9550 MODUL Blind-Corner Hinge
Door thickness: 16 to 28mm
Application: Inset
Opening angle: 95°
Boss assembly: Screw-on
Required fixings: Ø3.5 x 15mm Screws
Hinge material: Steel/Nickel plated
Closing mechanism: Spring-assisted with Blumotion
Three-dimensional adjustment: +/-2mm side | +/-2mm depth | height via mounting plates

Installation:
Cabinet front edge to first fixing position: 14mm

Easy and efficient slide-on assembly
Three-dimensional door adjustment
Pull-out stop
Blum Assembly MODUL

Blum offers a wide range of drilling and insertion machines, assembly devices and templates to ensure that the assembly of Blum products is accurate, quick and easy, for optimal performance requires precise assembly.
Templates or jigs are available from our listing under Tools
