Blum Aventos HK-TOP Tip-On Lift Mechanism Set

Blum Aventos HK-TOP Tip-On Lift Up Mechanism Hinge Set
Aventos HK Top folds up the one-piece front and impresses with many integrated functions. Ideally suited for carcase heights of 205-600 mm and carcase widths of up to 1800 mm. The inconspicuous look of the Aventos HK Top integrates perfectly into tall units and wall units in the entire living area. The simple and minimalist design of the flap fitting has won several awards. Even large and heavy flaps can be opened and closed effortlessly thanks to the perfected technology. Easy assembly and adjustment for uncomplicated attachment. The lift mechanism and front attachments can be used symmetrically. Multi-position stop - flap holds in any position. Tool-free assembly of the front using clip technology.
Material: lift-steel,
Dimensions: opening angle: 107 °, for door width up to 1800 mm, for door height 205-600 mm - installation depth 187 mm

Power factor:
420-1610 - Model 22K2300T
980-2800 - Model 22K2500T
1730-5200 - Model 22K2700T
3200-9000 - Model 22K2900T

Power factor LF = cabinet height mm x front weight (incl.double handle weight) kg that will give you lift required
The larger lift mechanism is recommended for overlapping areas
Maximum front weight 18 kg with two lift mechanisms
Opening mechanism: Tip-On
in the case of wide bodies, an energy store attached to the middle wall is recommended.
The reason for this is the bending of the front in the open position.
Front fastenings must be ordered separately in the selection - scope of delivery one pair each (for wood and wide aluminum frames

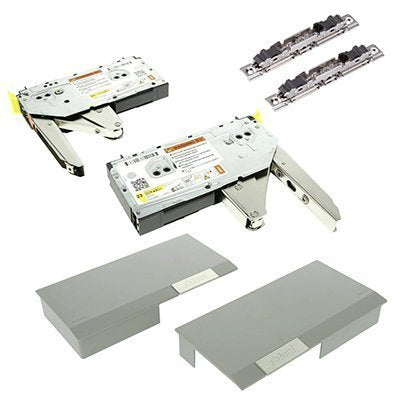

Set includes: 1 set of Lifts (2 pieces symmetrical, 2 x Grey caps covers, incl. 8 pre-assembled Euro screws Ø 6.5 x 35 mm + 2 Fixing plates + 1 assembly instructions)

Please Note: Tip-On piston NOT included (956.1004) or (956A1004) can be purchased separately.
