Blum Aventos HL-Top Lever Arms

Blum Aventos HL-Top Lever Arms.

AVENTOS HL lifts up small fronts parallel to the cabinet, making it the ideal solution for mid and high wall units with cabinets positioned above them.
The front moves up and out of the user’s way so it can be left open during cooking.

Well suited for small area, single fronts
Material: Steel
Finish: Nickel Plated
Fixing: Clip
Perfect motion with variable stop
Available in Four sizes:
22L3200-Cabinet height 300 - 339mm, Door Weight: 1.5-9.00 Kg
22L3500-Cabinet height 340 - 389mm, Door Weight: 1.75-10.00 Kg
22L3800-Cabinet height 390 - 540mm, Door Weight: 2.0-12.25 Kg
22L3900-Cabinet height 480 - 580mm, Door Weight: 2.5-14.00 Kg
Tool-free assembly

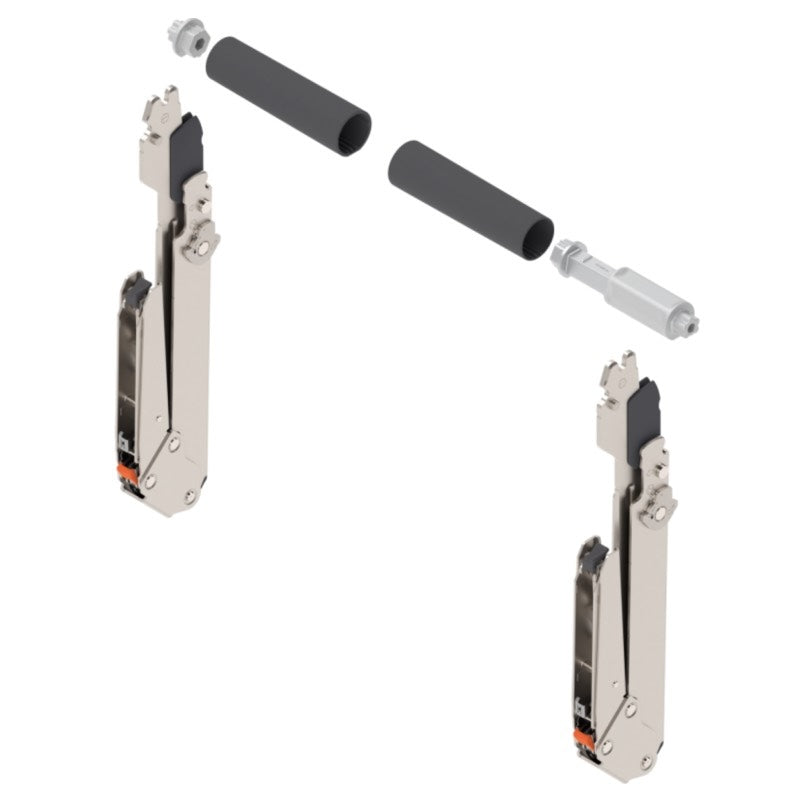

Aventos HL-Top Lever Arm Composed of:
1 x lever arm left
1 x lever arm right
2 x cross stabiliser cover cap oval

Aventos HL Ovierview
Cross stabiliser and other lever arms are available from our website Aventos HL
