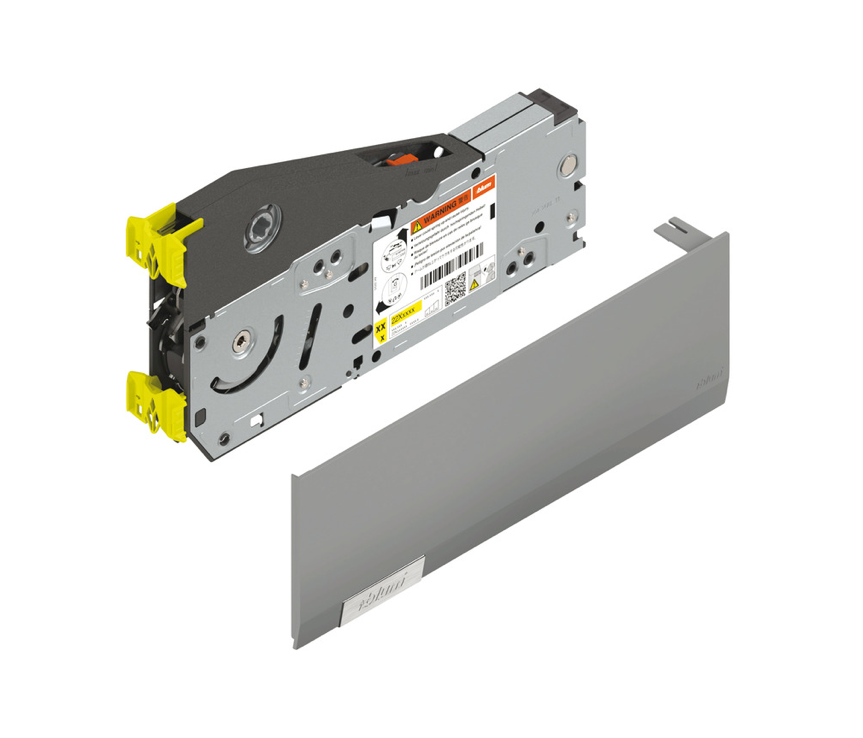

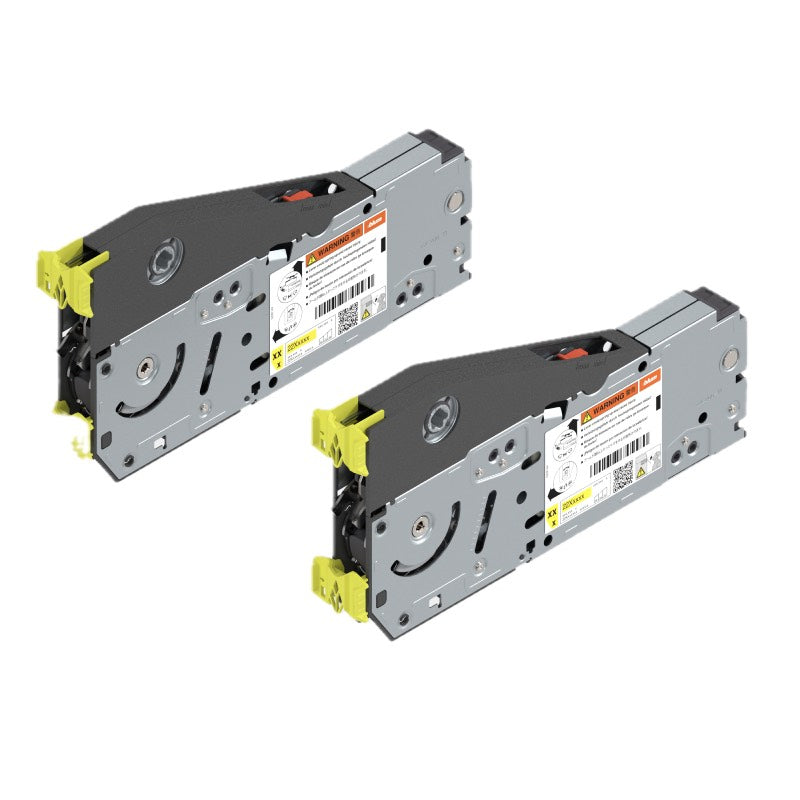

Blum AVENTOS HL Top Lift Mechanism Set

Blum AVENTOS HL Top Lift Mechanism Set

AVENTOS HL Top lift mechanism for use with cabinet heights:
22L2200-300 to 389mm (door weight 1.50 up to 10.00kg)
22L2500-390 to 580mm (door weight 2.00 up to 14.00kg)
Maximum door width 1800mm

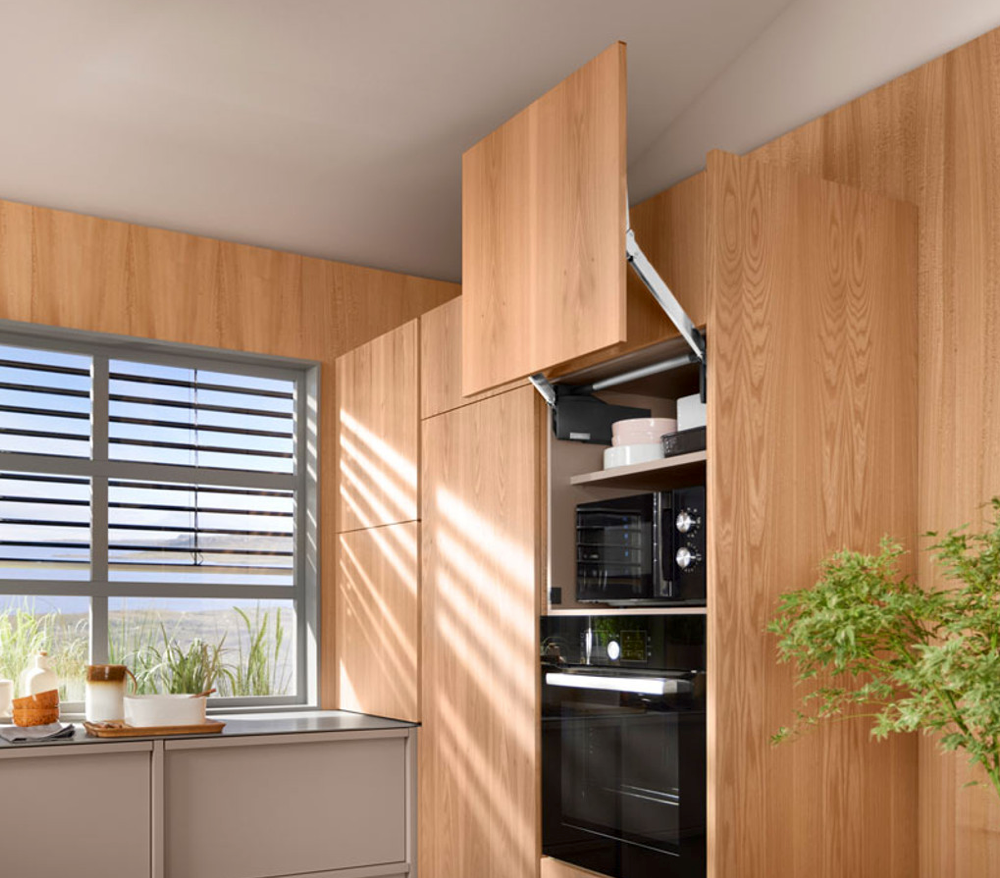

Furthermore, suitable for wall cabinets where you want to lift the one part front parallel to the cabinet.
Additionally, simple to install and smooth to operate, the mechanism installs to the cabinet side and eliminate the need for further hinges.
The AVENTOS HL Top mechanism effortlessly lifts both heavy and light doors, while the variable stop ensures the fascia always remains in the position.
As the door closes, integral soft-close dampers effortlessly and silently draws the door shut, preventing slamming.
Ideal for cabinets concealing small appliances
Can be used with wooden fronts, wide and narrow aluminium frames, or even thin fronts of just 8mm or more with EXPANDO T.
Finally, can be combined with the SERVO-DRIVE electrical motion support system - for the entire kitchen or individual applications.
Minimum internal cabinet depth: 264mm
Minimum internal cabinet height: 141mm
Fixing to cabinet: Screw-on
Closing mechanism: BLUMOTION soft close
Lift material: Steel/Zinc plated
Item package: L+R with 10 chipboard screws 35 x Ø4.0mm

Please note: lever arm set, cover caps, cross stabiliser rod and front fixings to be purchased separately HL
