Blum Aventos HS-TOP Lift Mechanism Set

Blum Aventos HS-TOP Lift Mechanism Set.

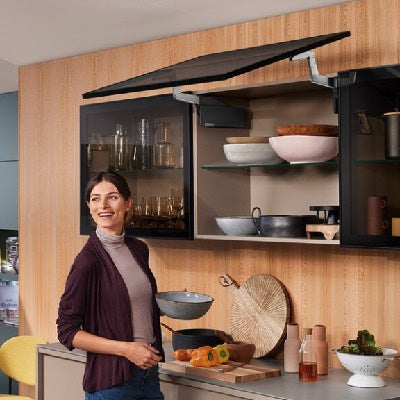

The AVENTOS HS top lift system in the wall cabinet exudes a sense of weightlessness.
Even large one-part fronts can be moved with the utmost ease and access to storage items is maintained at all times.
AVENTOS HS top facilitates cabinet dimensions from 350 to 800 mm tall and up to 1800 mm wide.
Ideal for fitting with servo-drive for instant lift.

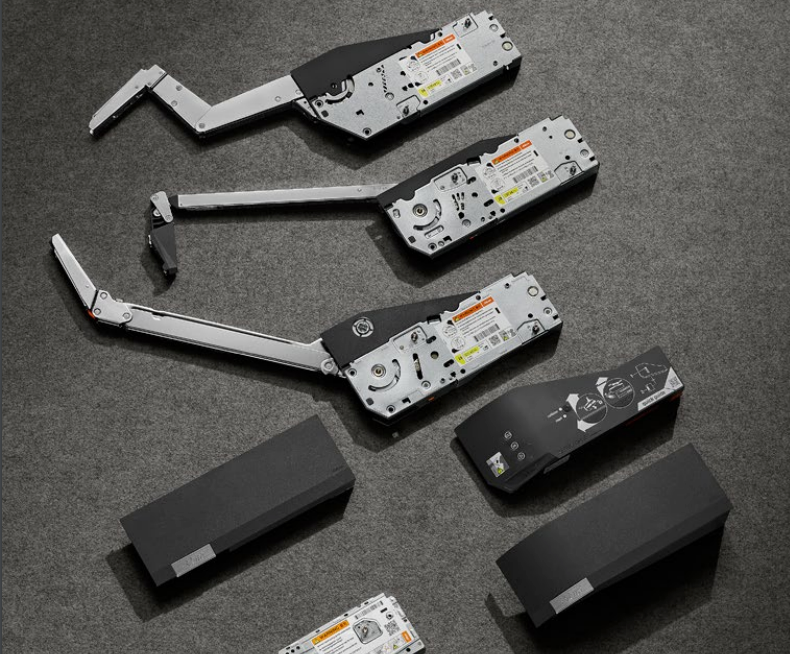

Three lift mechanisms and one lever arm for all areas of application.
Both the lift mechanisms and the front fixing brackets have been designed for symmetrical use.
Ideal for large, one-part fronts
Cabinet height 350-800 mm
Cabinet width up to 1800 mm
Internal depth of at least 264 mm
Integrated BLUMOTION adjustment feature for soft and effortless closing
Variable stop, symmetrical lever and tool-free assembly.
Fixed position of the lift mechanism and front fixing bracket
Two lift mechanism fixing methods
3-dimensional adjustment of the front
Available as below:
22S2201: Cabinet Height: 350-540, Weight kg: 2.00-12.50
22S2501: Cabinet Height: 480-660, Weight kg: 2.75-15.25
22S2801: Cabinet Height: 650-800, Weight kg: 3.50-18.50

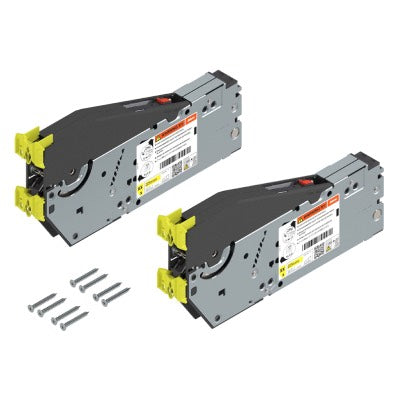

Package include two mechanism and 8 fixing screws

The power factor can be increased by 50% when using a third lift mechanism.
We recommend a third lift mechanism for wide cabinets. This will prevent the front from sagging when open.

Lever arms, cover caps, or front fixing brackets to be order separately
