Blum Depth Adjustment For MOVENTO Locking Device 298.7601 Set

Blum Depth Adjustment For MOVENTO Locking Device 298.7601 Set
4-dimensional adjustment ease. Not only can you adjust the height and tilt of fronts.
MOVENTO now also offers side and depth adjustment so gap alignment is quick and easy, precise and tool free.

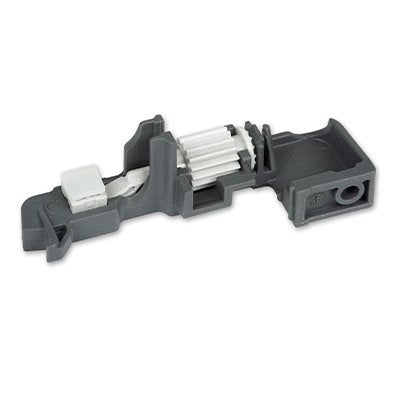

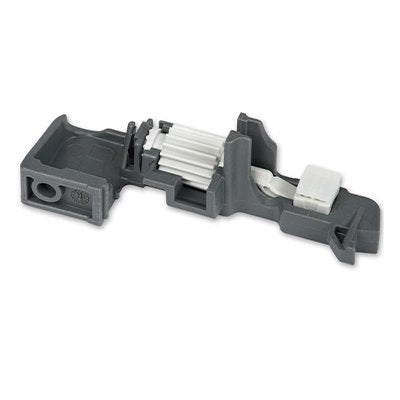

For the Blum MOVENTO drawer runners, the 298.7601/RH depth adjustment is an optional addition and is used for drawers with inset fronts.

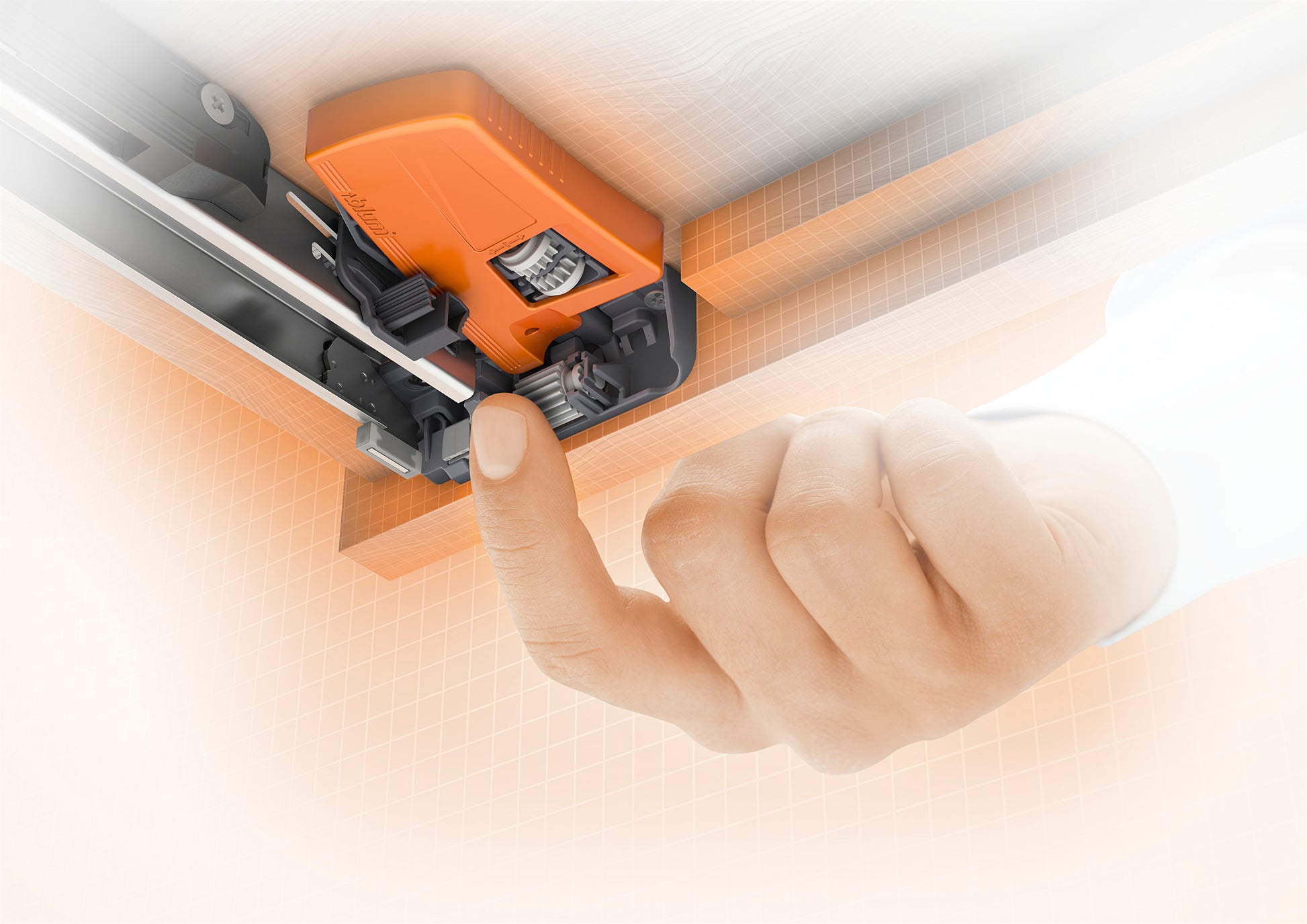

The depth adjustment allows you to achieve an even gap with a simple thumb turn, aligning the drawer front with the frame.
The 298.7601/RH installs directly onto the locking device T51.7601/RH, and offers ± 2mm of adjustment.
Fascia depth adjustment for MOVENTO runners
Only for use with inset fascia applications
Thumb turn adjustment ± 2mm
Installs directly onto the locking device T51.7601/RH
Colour: Ral 7037
Depth Adjustment: +/-2 mm
Length: 71.6 mm
Width: 28.8 mm
Thickenss: 22 mm
Fixing: Screw Fix -Not Included
Material: Nylon
Suitable: MOVENTO
