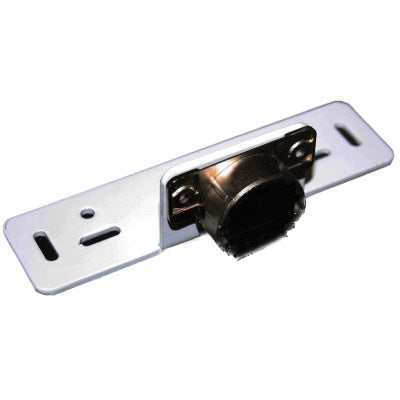

Blum Easy Fit Integrated Appliances Door Hinge System Single

Blum Easy Fit Integrated Appliances Door Hinge System Single.

Generally, you can attach a kitchen door to a free stood appliance with our easy-fit single hinge.
Easy Fit-EF2 appliances hinge system is available for doors up to a thickness of 24mm.
This hinge is easy to fit and will enable all kitchen doors to be fixed to the front of the free-standing appliance, giving the look of integrated appliances.
Additionally, the hinge is also universal in the handing so can be fitted to either the left or right of the appliance.
Suitable for washing machines, dryers, dishwashers or even slim line freezer or fridges.

Complete with bracket, hinges, door stop & fixings
Designed to fit a standard 715mm high cabinet door
Application: Overlay
Door Thickness: 16-24mm

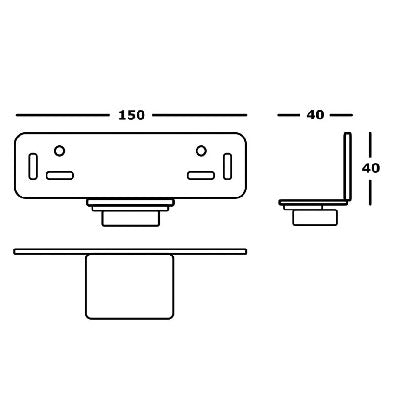

Length: 150mm
Size: 40x40x3mm
Finish: Nickel-White
Opening: 110 degree
Soft Close: No
Allows free stood appliances to look integrated
Material: Powder-coated steel
Ideal for fridges or washing machines
Lifetime warranty
Please note this needs to be fitted to the left or right hand of a 600mm carcass.
It is recommended that a 650mm wide worktop is used, but in some situations, a 600mm worktop will be satisfactory and allow adequate space for the Easy-Fit hinge and fascia to be fitted in the correct line (check the depth of the appliance to determine which will be suitable).

In addition, where the Easy-Fit hinge is to be used for a slim-line fridge, freezer or dishwasher, a spacer will be required to attach the plinth to the fascia, to open in one action.

Sold as single, may need 2 or 3 depend on door height.
Longer system is available too. Blum Easy Fit Integrated Appliances Door Hinge System
