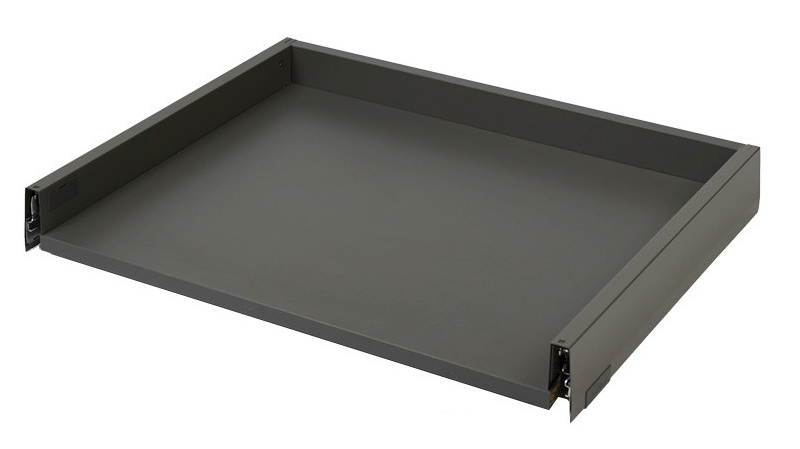

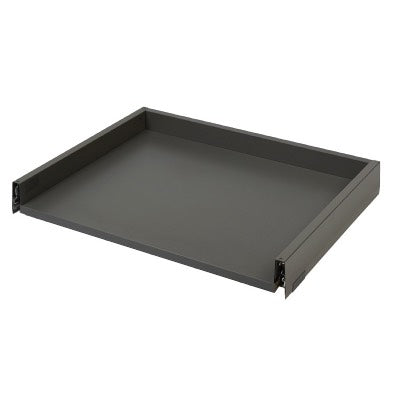

Blum MERIVOBOX Drawer Set N Height Orion Grey

Blum MERIVOBOX Drawer Set N Height Orion Grey

Components ONLY ( No Base, Back or Front )

MERIVOBOX is simply unique thanks to its distinctive drawer side design, straight lines and unmistakable look. And the design line produces beautiful light reflections on the drawer side. Offering variety has never been so easy. This platform makes it incredibly simple to manufacture and assemble drawers and pull-outs to meet every demand.
At the heart of the system is the cabinet profile with the same fixing position for all applications. This is the basis for the drawer of your choice. No matter which model you opt for, the front and front fixing bracket are always the same. A true platform that simultaneously reduces complexity and increases variety.
Includes integrated BLUMOTION for soft and effortless closing and can be combined with SERVO-DRIVE or TIP-On
Insert the front in the holding position and simply clip on - easy attachment even if the pull out is already in place. Tool free front assembly and 3-dimensional front adjustment.

Available Length: 400mm, 450mm, 500mm
Type: N Height (68.5mm)
Brand: Blum
Colour: Orion Grey
Design: MERIVOBOX
Drawer Side Height: 68.5mm
Fixing Method: Screw Fixing
Screw Fixings NOT Included
Height required: 80mm
Internal Depth: NL +3mm
Nominal Length starts: 400mm
Push to Open: Available
Soft Close: Yes
Guarantee: Lifetime
Max. Weight Capacity: 40kg
Runner: Blumotion 40kg

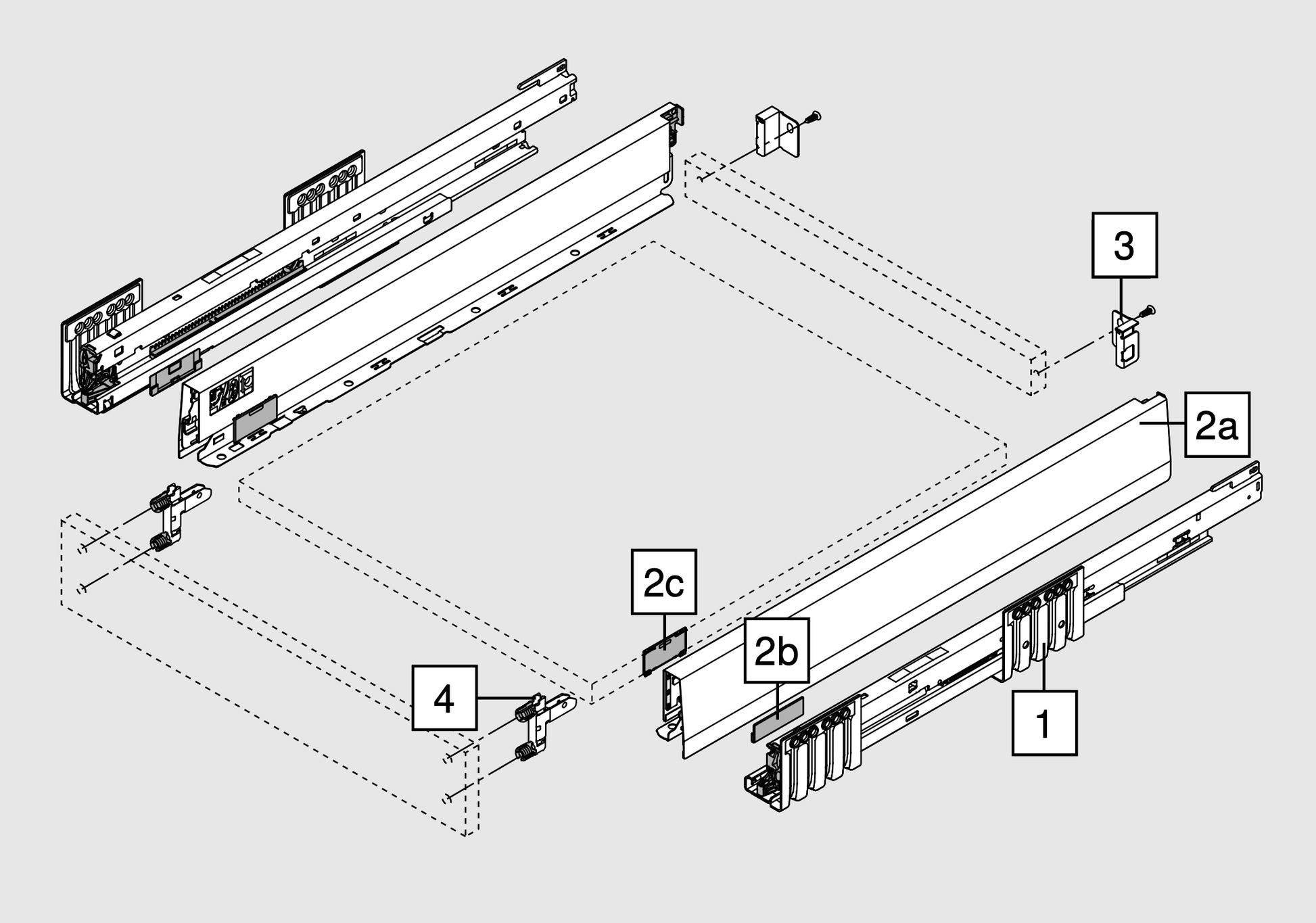

Included: Blumotion runners, sidesx2, fixing brackets or push-to-open tip-on mechanism

Instruction Available to download
