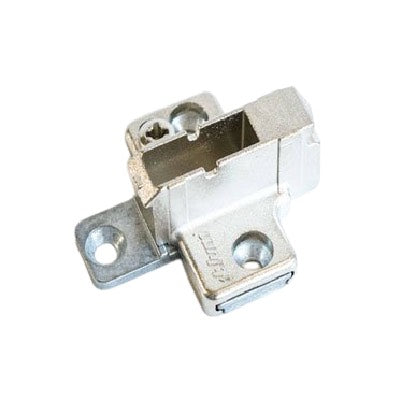

Blum Mounting Plate 175H7190 Clip Cruciform 9mm Spacing Zinc

Blum Mounting Plate 175H7190 Clip Cruciform 9 mm Spacing Wood Screws
Designed for 9mm spacing, making it the preferred choice for converting 155° and 170° dual wide-opening hinges to inset applications.
Compatible hinge: CLIP top BLUMOTION/CLIP top/CLIP
Spacing: 9 mm
Suitable for wood screws 3.5/4mmx 17mm
Material: Zinc
Finish: Nickel plated
ShapeType: Cruciform
Finish: Nickel plated with increased corrosion resistance
Distance between fixing positions : 32 mm
Distance cabinet front edge to first fixing position: 37 mm
Mounting plates height adjustment: through lower and upper part/screws
Screws are not included
