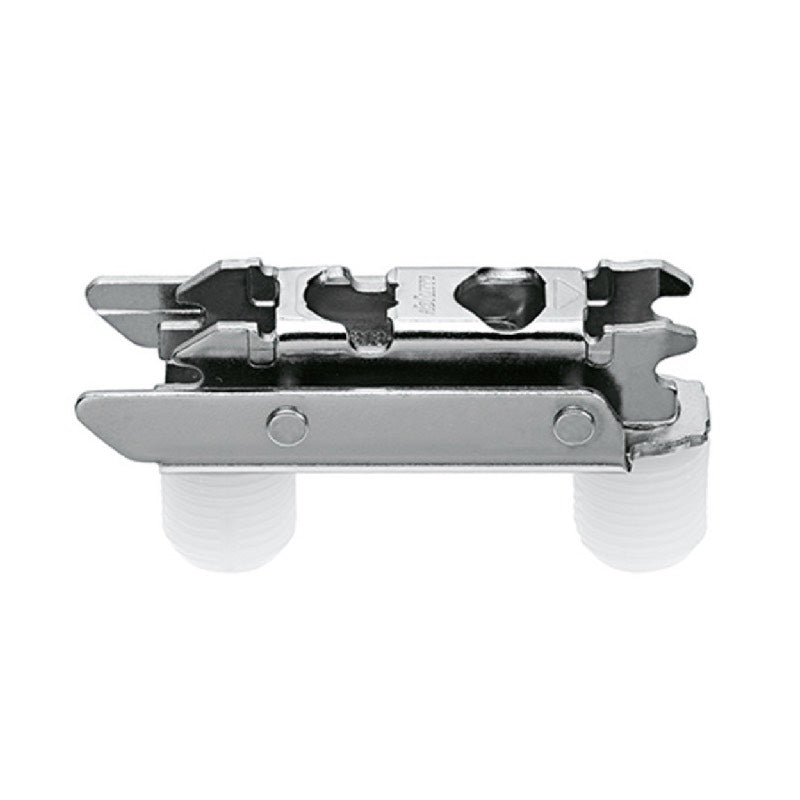

Blum Mounting Plate 177H3130 In-Line Knock-In 3mm Spacing

Blum Mounting Plate 177H3130 In-Line Knock-In 3mm Spacing
Compatible Hinge: CLIP top BLUMOTION/CLIP top/CLIP
Spacing: 3 mm for 15/16mm cabinet side
Material: Steel
Finish: Nickel Plated
Shape: Straight
Fixings: Knock-in (pre-fixed Ø10mm dowels)
Distance between fixing positions: 32 mm
Distance cabinet front edge to first fixing position: 20 mm
Mounting plates height adjustment: +/-2mm with Cam
Diameter of fixing holes: 10mm
Drilling depth of fixing holes: 11.5mm

Requires insertion ram or knock-in tool to apply pressure directly on the screw.
Cabinet front edge to first fixing position: 20mm
